Description

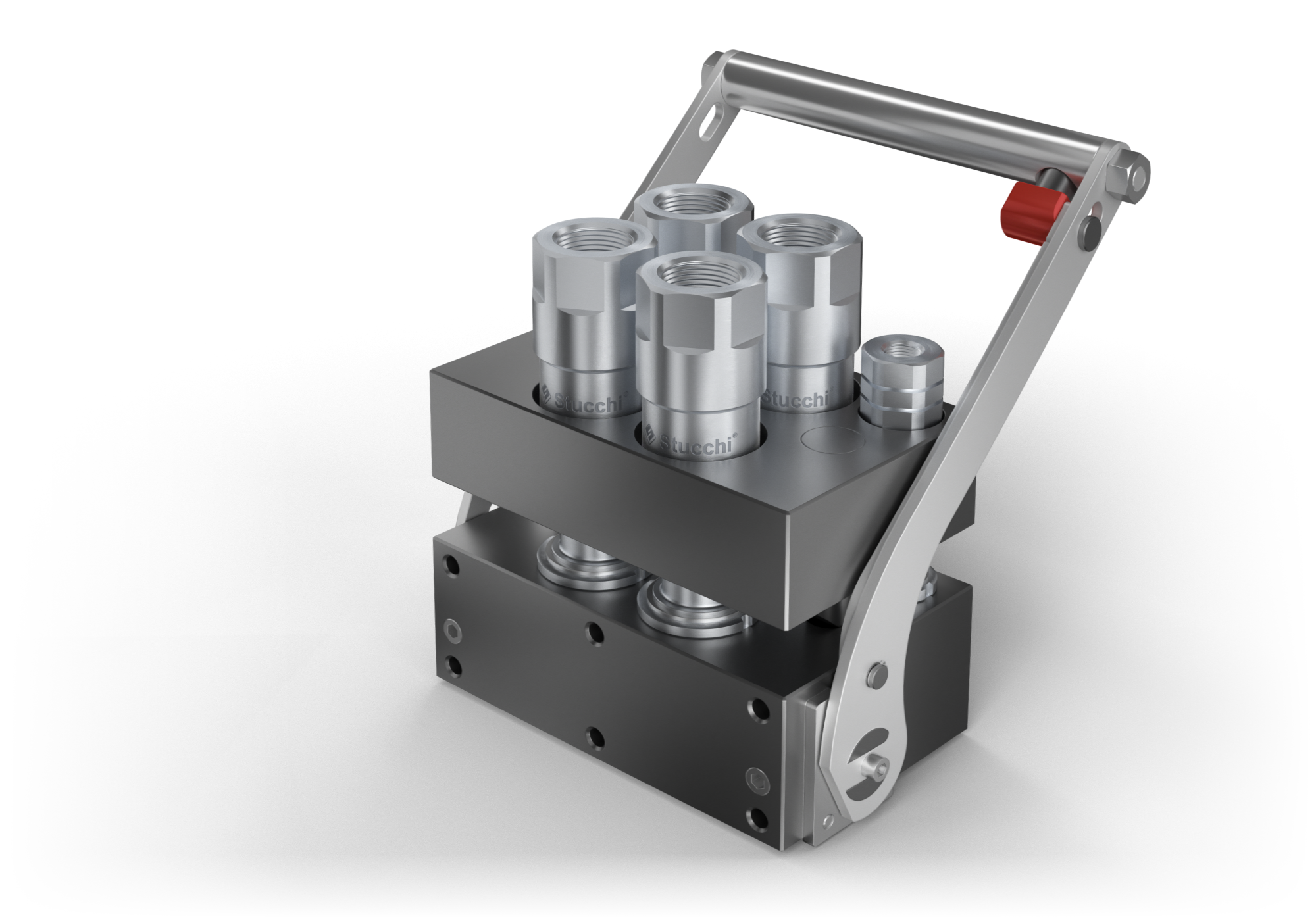

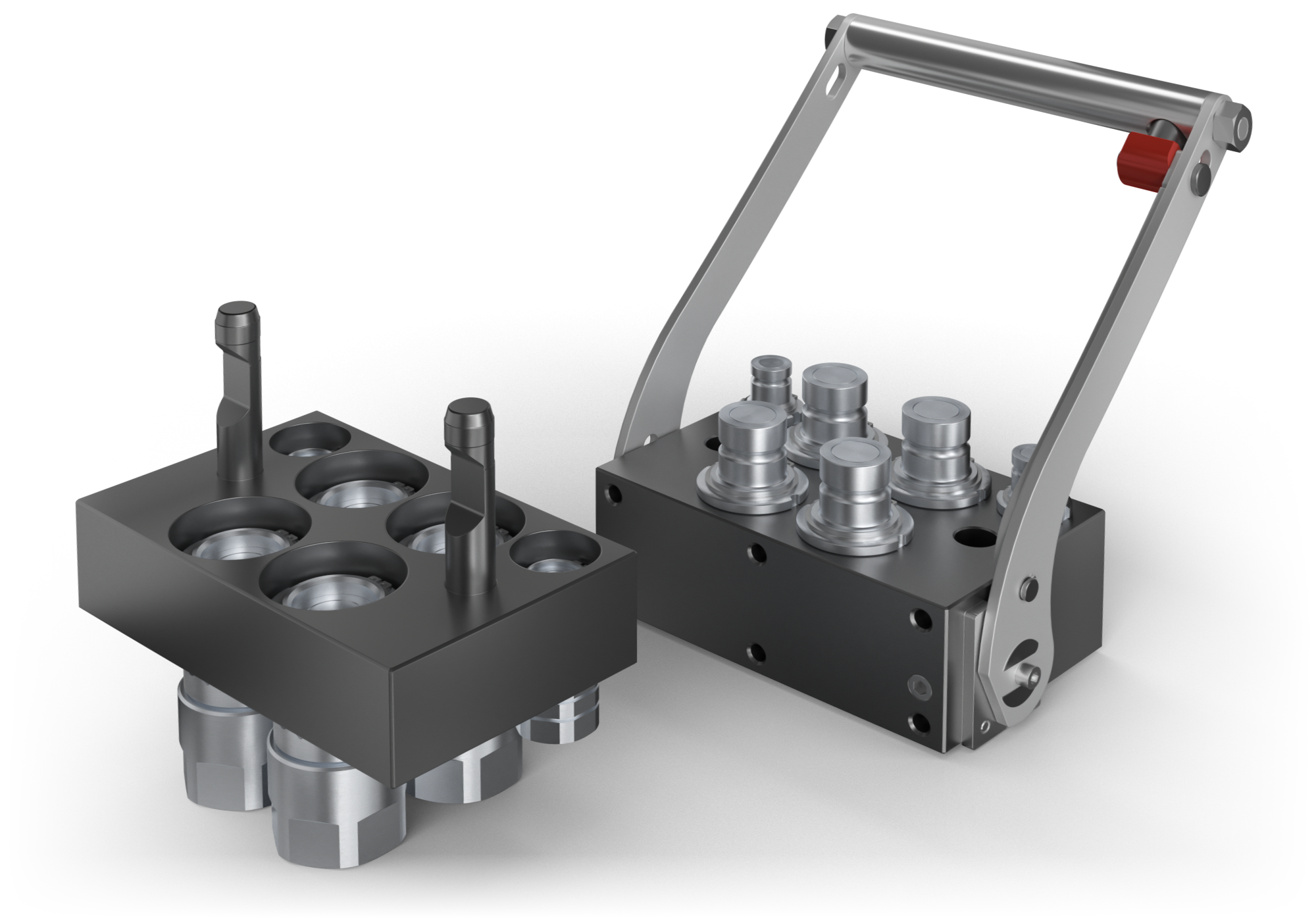

Single Handle Connection of Multiple Hydraulic Couplings Mounted in a Plate
FEATURES
- Size range: 3/8” thru 1”
- Port options: NPT, SAE, BSP
- Connect/disconnect up to 25 MPa/300 bar/3625 psi residual pressure
- Working pressure: 30-35 MPa/4350-5075 psi
- Simple to use, with single motion connection
- Auto-lock design prevents accidental disconnection
- Min. of 1 to max. of 6 lines of the same nominal coupling size and different media
APPLICATIONS
- Any application requiring leak free connections with or without residual pressure of multiple couplings
- Harvesters, front-end loaders, snow removal, construction machinery, mining, drilling machinery
- Refrigeration equipment
