Flat Face Couplers · Skid Steer Hydraulic Couplers

A-PREMIER INTERNATIONAL SERIES

Scraped SKU: 892 2026-06-05 02:45:26

Description

Description

ISO 16028 Interchange

Features
  • Size range: 1/8” thru 1 1/2”
  • Port options: BSP, DIN
  • Interchanges with ISO 16028
  • Working pressure: 27-42 MPa/3915-6090 psi range
  • Lock system stops unwanted disconnect
  • Modular structure for multiple port option
  • Hardened steel, 12 to 20 balls reduce brinelling
Applications
  • Specifically designed for applications needing no-leak performance
  • Ideal for limiting contamination in hydraulic circuit
  • Applications involving high pressure impulses in agriculture equipment, mobile construction equipment, oil & gas exploration, and general industrial plants

Rai

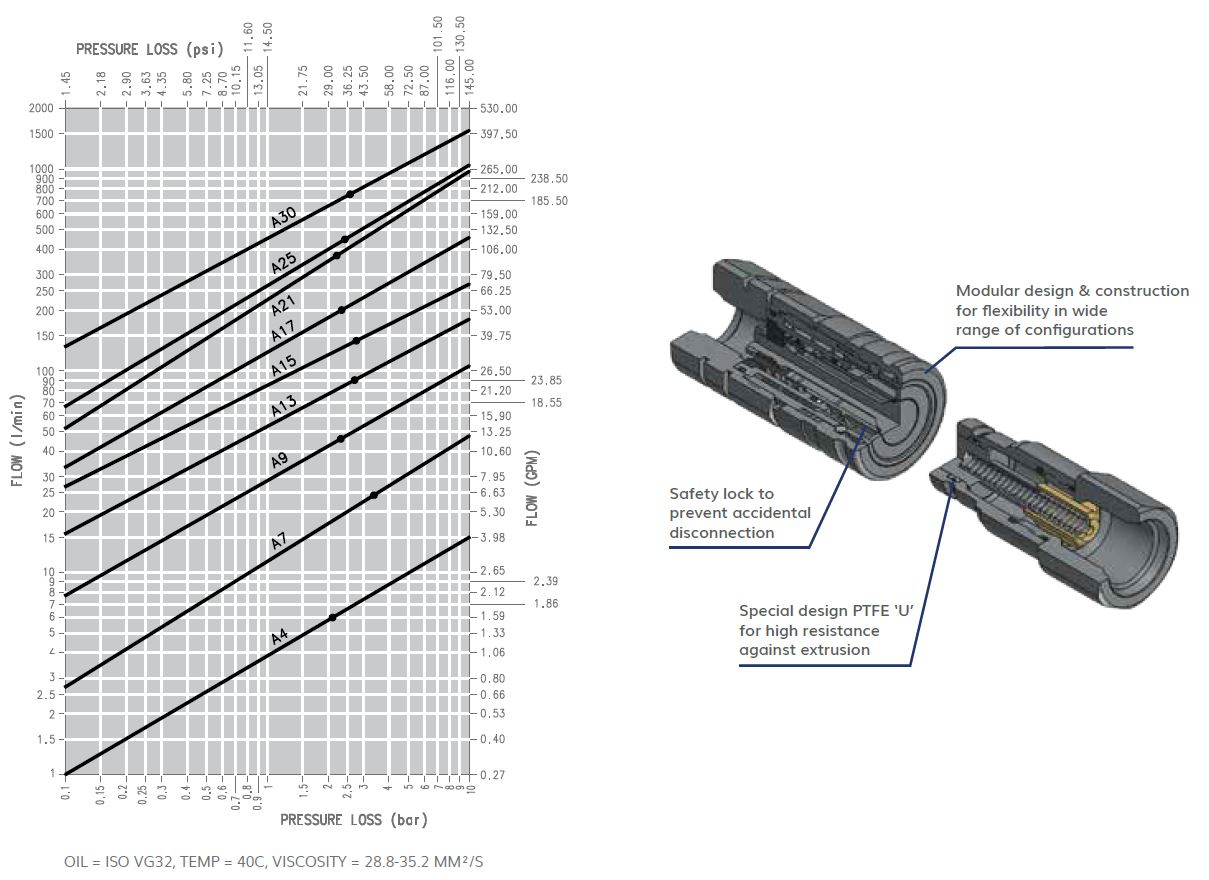

Pressure Drop

a premier pressure drop

Size Diagram

a premier pressure drop

To idenify the DIN fitting size, measure the following: Using a thread gauge, determine the number of millimeters per thread. With calipers, find the thread diameter by measuring the O.D. on the male and the I.D. on the female. Measure the tube O.D.with the calipers so you can identify the fitting as either light series or heavy series

a international coupler nipple

Variations (97)
