Description
Special Zinc Treatment
Features
- Size range: 3/8” thru 5/8”
- Port options: NPT Interchanges with ISO 16028
- Exceeds impulse test of ISOA-7241 test
- Lock system stops unwanted disconnect
- Modular structure for multiple port option
- Hardened steel, 12 to 20 balls reduce brinelling
Applications
- Medium- to high-corrosion environments
- Anywhere fluid loss and hydraulic circuit contamination need to be eliminated
- Snow removal, mobile construction, agriculture, and mining operations

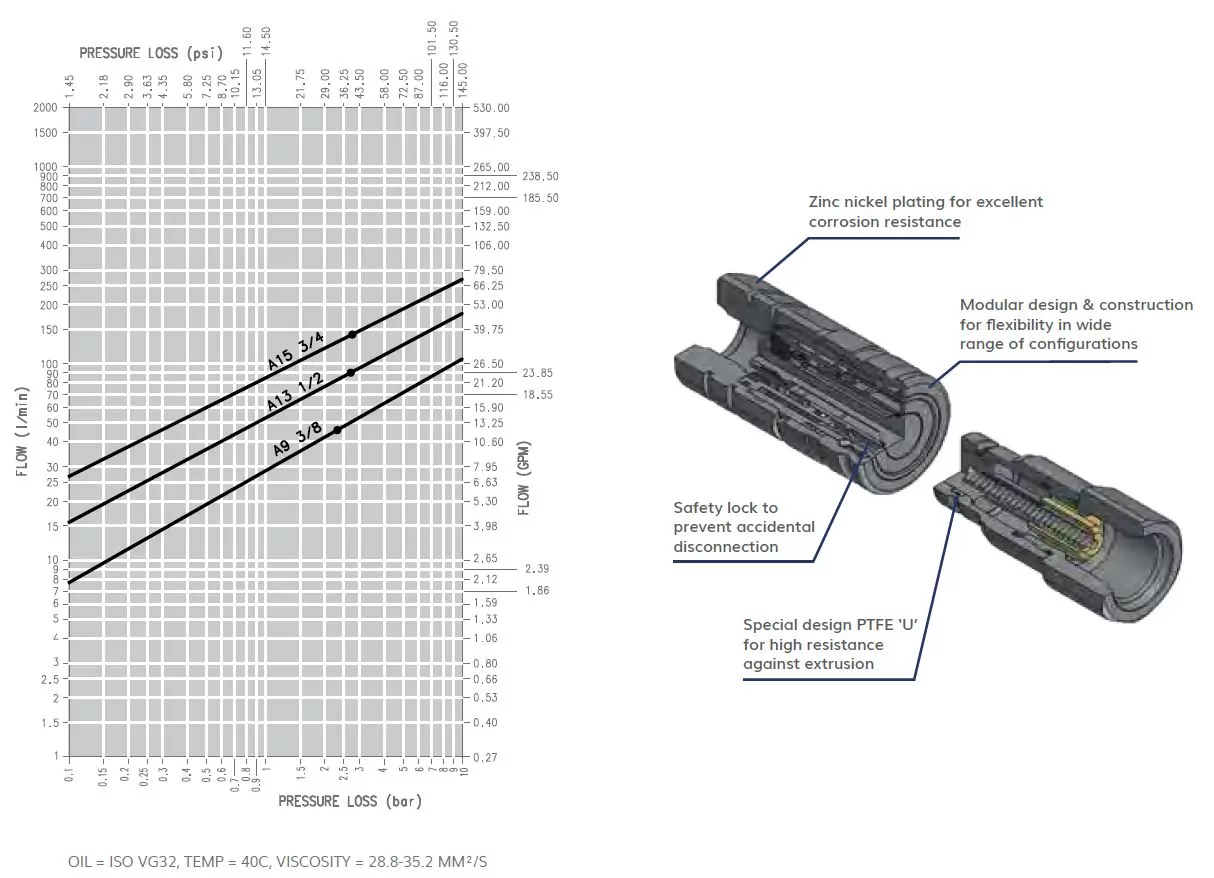

Pressure Drop

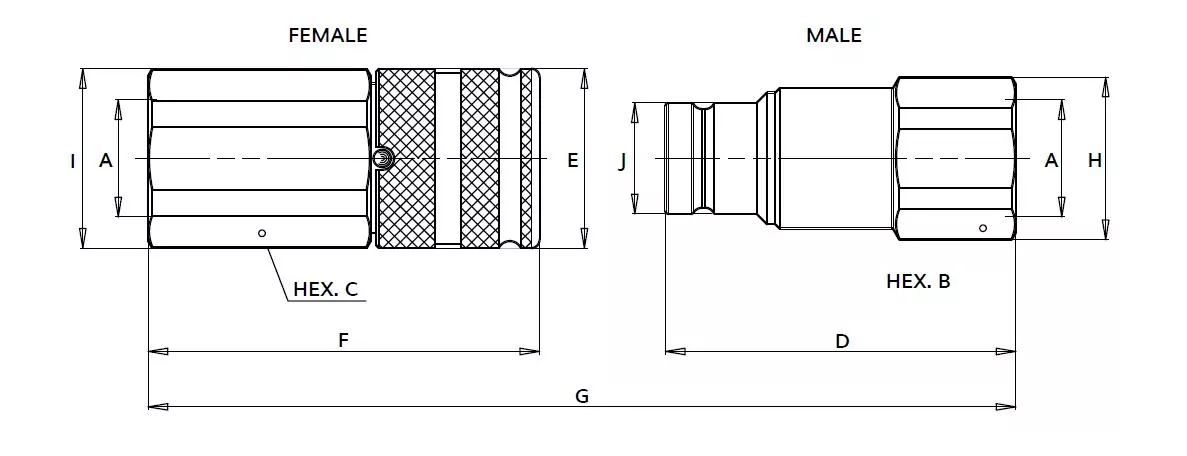

Size Diagram
A-ZN Series Accessories Coupler Dust Cap | Nipple Dust Cap
| Body Size | Port Size | Order Code | Description | Order Code | Description |
|---|---|---|---|---|---|
| Coupler/Female Dust Cap | Nipple/Male Dust Cap | ||||
| 3/8 | 3/8 | 815100003 | CAP M. FIRG38/A9 | ||
| 3/8 | 3/8 & 1/2 | 815100002 | CAP F. FIRG38/A9/FIRG12 | 815100005 | CAP M. FIRG12/A9 |
| 1/2 | 1/2 | 815100004 | CAP F. FIRG12A/A13 | 815100007 | CAP M. FIRG12A/A13 |
| 1/2 | 1/2 & 1/4 | 815100006 | CAP F. FIRG34/A13 | 815100009 | CAP M. FIRG34/A13 |
| 5/8 | 3/4 | 815100008 | CAP F. FIRG34B/A15 | 815100011 | CAP M. FIRG34B/A15 |
Repair Kits
| Order Code | Description |
|---|---|
| A Premier Series | |
| 815700097 | KIT M. A9 |
| 815700099 | KIT M. A13 |
| 815700101 | KIT M. A15 |
