Flat Face Coupling

FEATURES
  • Size range: 1/8” thru 3/8”
  • Port options: NPT, BSP
  • Working pressure: 700-720 bar/10,000 psi
  • Locking sleeve eliminates accidental disconnection
  • Flat face design limits leakage and contamination of hydraulic circuit
APPLICATIONS
  • High pressure, leak-free requirements
  • Mobile construction
  • Emergency cutting tools, hydraulic wrenches, tools
  • Industrial machinery

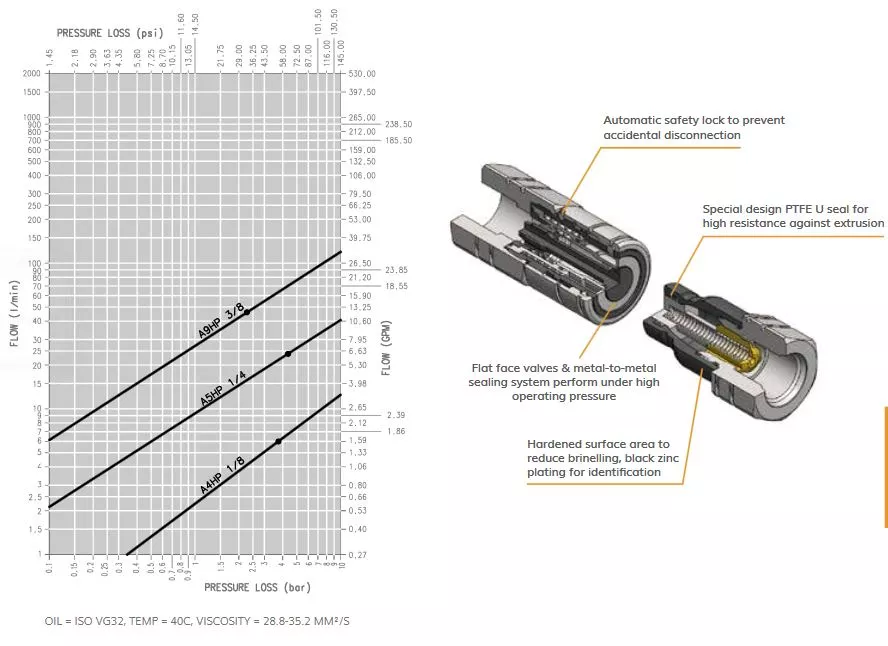

Pressure Drop

a hp pressure drop

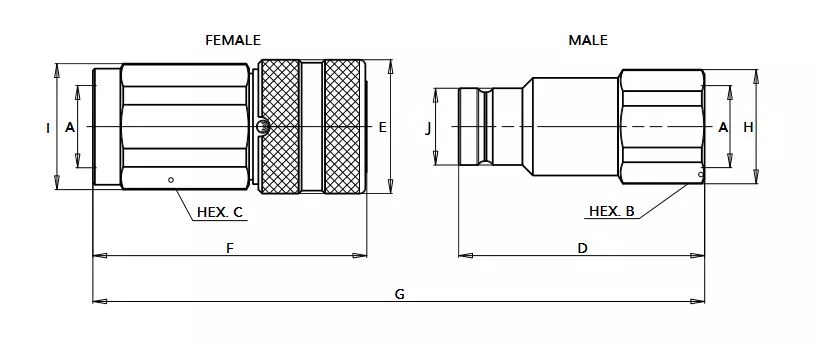

Size Diagram

a hp size diagram

Variations (13)

801601004

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)21750
Spillage (ml)0.02

801601005

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)29000
Spillage (ml)0.02

801601008

Body Size1/4"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)21750
Spillage (ml)0.02

801601009

Body Size1/4"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)29000
Spillage (ml)0.02

801601010

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)18125
Spillage (ml)0.02

801601011

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)29000
Spillage (ml)0.02

801601012

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)18125
Spillage (ml)0.02

801601013

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)29000
Spillage (ml)0.02

801601014

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)23200
Spillage (ml)0.04

801601015

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)23200
Spillage (ml)0.04

801601016

Body Size1/4"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)21750
Spillage (ml)0.02

801601018

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)21750
Spillage (ml)0.02

801601019

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)29000
Spillage (ml)0.02

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsBSP,NPT
Valve StyleFlat Face
Working Pressure10,000
Body Size1/8",1/4",3/8"
Port Size1/8",1/4",3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10440
Burst Pressure (PSI)18125, 21750, 29000
Spillage (ml)0.02, 0.04
