Description
ISO 16028 Interchange
Features
- Size range: 3/8” thru 3/4”
- Port options: NPT, SAE
- Interchanges with ISO 16028
- Simple, easy-to-use push/pull connection
- Breakaway design automatically disconnects in case of accidental disconnection of the hydraulic hose
- Prevents leakage and damage
Applications
- Refuse compactor/power units and dump trailer connections
- Snow plow equipment
- Agricultural implements

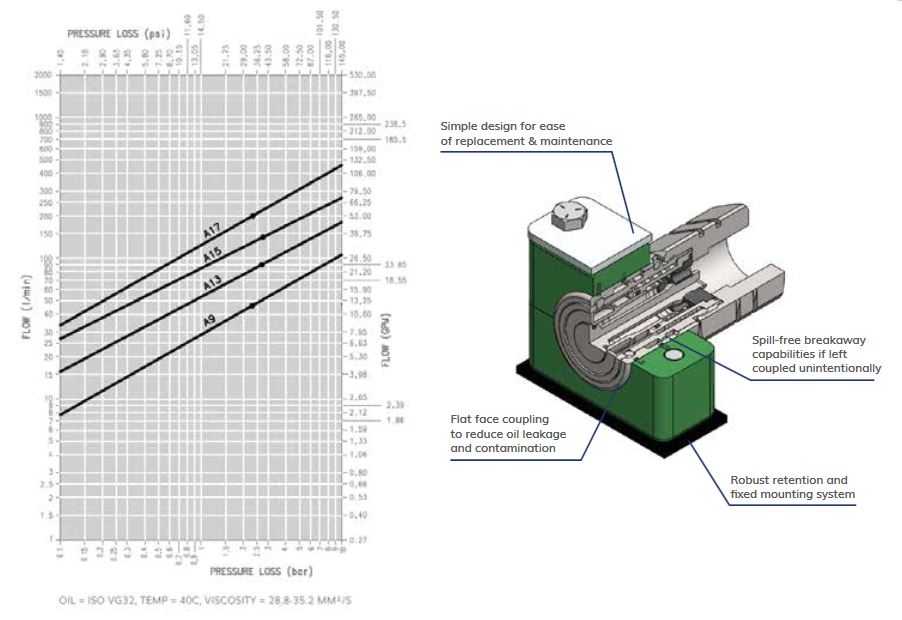

Pressure Drop
Order Codes
| BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | COUPLER | DESCRIPTION |
|---|---|---|---|---|---|
| 3/8 | 1/2 | SAE | PPC0608FO | A9 | PUSH PULL FF 3/8 X 1/2 SAE |
| 1/2 | 1/2 | NPT | PPC0808FP | A13 | PUSH PULL FF 1/2 X 1/2 NPT |
| 1/2 | 3/4 | SAE | PPC0812FO | A13 | PUSH PULL FF 1/2 X 3/4 SAE |
| 1/2 | 3/4 | NPT | PPC0812FP | A13 | PUSH PULL FF 1/2 X 3/4 NPT |
| 5/8 | 3/4 | SAE | PPC1012FO | A15 | PUSH PULL FF 5/8 X 3/4 SAE |
| 5/8 | 3/4 | NPT | PPC1012FP | A15 | PUSH PULL FF 5/8 X 3/4 NPT |
| 3/4 | 3/4 | NPT | PPC1212FP | A17 | PUSH PULL FF 3/4 X 3/4 NPT |
| 3/4 | 1 | NPT | PPC1216FP | A17 | PUSH PULL FF 3/4 X 1 NPT |
