Flat Face Couplers · Skid Steer Hydraulic Couplers

A-HD SERIES

Scraped SKU: 194 2026-06-05 02:45:26

Description

Description

ISO 16028 Interchange

Features
  • Size range: 3/8” thru 1/2”
  • Port options: NPT, SAE, JIC, ORFS, BSP
  • Interchanges with ISO 16028
  • Connect/disconnect up to 1595 psi residual pressure
  • Connect under pressure, by hand
  • Flat face design eliminates leakage and contamination in the circuit
  • Black ID ring
Applications
  • Mobile equipment and attachment tools, where sun exposure/temperature change causes pressure due to thermal expansion of trapped fluid
  • Any application where static pressure can get locked into the system

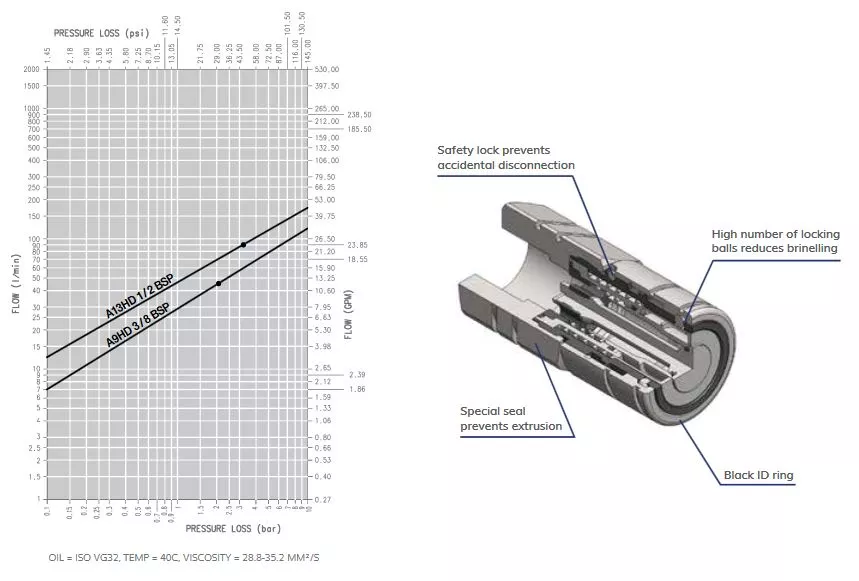

a hd pressure drop

Variations (8)

806804006

Body Size1/2"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

808304016

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

806806000

Body Size1/2"
Port Size5/8"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

808313004

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

806804000

Body Size1/2"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

808304018

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

806801002

Body Size1/2"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

806801000

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Valve StyleFlat Face
Port OptionsBSP,JIC,NPT,ORFS,SAE
Working PressureUp to 5000
Body Size3/8",1/2"
Port Size1/4",1/2",3/4"
Port OptionJICBULKHEAD,NPT,ORFSBULKHEAD,SAE
Max Operating Pressure Coupled (PSI)4785, 5075
Burst Pressure (PSI)14500
Spillage (ml)0.012, 0.02
