Flat Face Couplers · Skid Steer Hydraulic Couplers

APM SERIES

Scraped SKU: 190 2026-06-05 02:45:26

Description

Description

ISO 16028 Interchange

Features
  • Size range: 3/8” thru 1 1/2”
  • Port options: NPT, SAE, JIC, ORFS, BSP
  • Interchanges with ISO 16028
  • Relieves pressure within itself only
  • Connect up to 30 MPa/4350 psi residual pressure
  • Connect under high pressure, by hand
  • Flat face design eliminates leakage and contamination in the circuit
  • Male body black zinc plated for identification
Applications
  • Mobile equipment and attachment tools, where sun exposure/temperature change causes pressure due to thermal expansion of trapped fluid
  • Any application where static pressure can get locked into the system

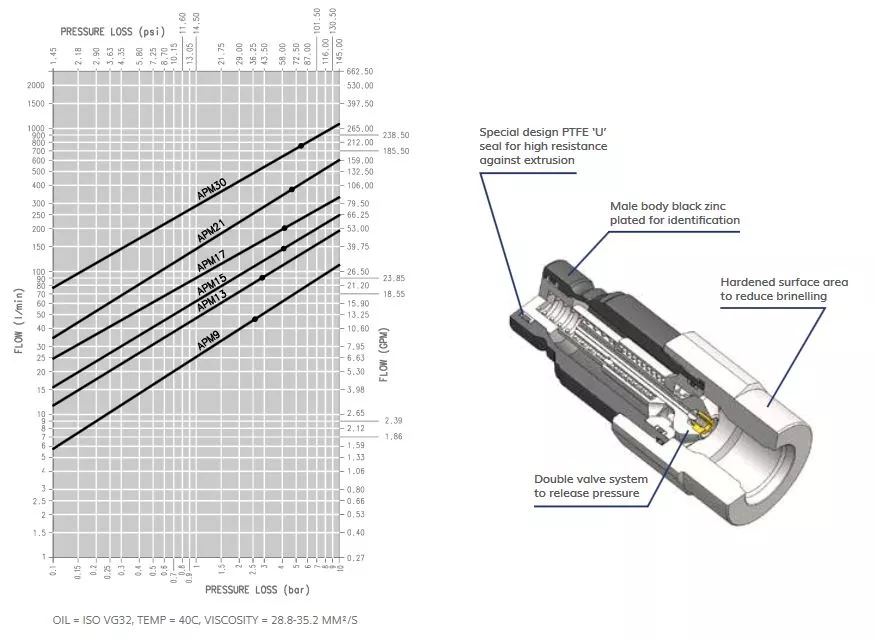

Pressure Drop

apm pressure drop

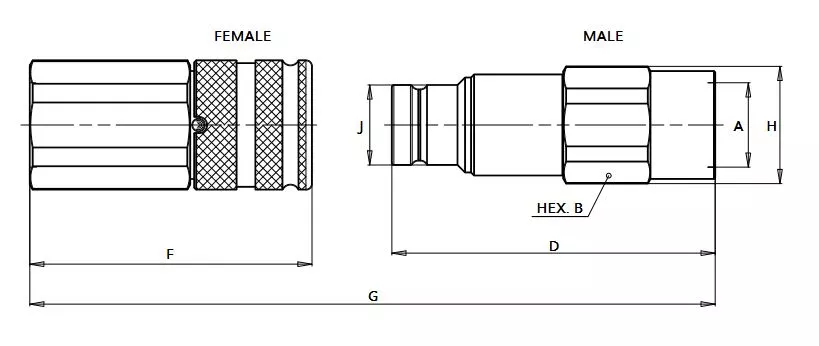

Size Diagram

Apm Size Diagram



APM Accessories – Nipple Dust Cap

PORT SIZE ORDER CODE DESCRIPTION
3/8 815100003 CAP M. APM9/A9
3/8, 1/2 815100005 CAP M. APM9/A9
1/2 815100007 CAP M. APM13/A13
1/2, 5/8, 3/4 815100009 CAP M. APM13/A13
3/4 815100011 CAP M. APM15/A15
3/4, 1 815100013 CAP M. APM17/A17
1, 1 1/4 815100015 CAP M. APM21/A21
1 1/2 815100017 CAP M. APM30/A30

* Additional Colors Available on Request

Repair Kits

ORDER CODE DESCRIPTION
APM SERIES
815700003 KIT M. APM9
815700005 KIT M. APM13
815700007 KIT M. APM 15
815700009 KIT M. APM 17
815700011 KIT M. APM 21
815700013 KIT M. APM 30

Variations (26)

805201001

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805201003

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805201005

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805201007

Body Size1/2"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805201011

Body Size3/4"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625

805201015

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)2900

805201019

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625

805204001

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805204003

Body Size1/2"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805204005

Body Size1/2"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805204007

Body Size5/8"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805204015

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)2900

805204017

Body Size1"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625

805204025

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805204027

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625

805200001

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805200003

Body Size3/8"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805200005

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805200007

Body Size1/2"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805200009

Body Size5/8"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805200011

Body Size3/4"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625

805213001

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805213003

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805213005

Body Size1/2"
Port Size3/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805206001

Body Size1/2"
Port Size5/8"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

805206003

Body Size1/2"
Port Size1/2"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)4350

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsBSP,JIC,NPT,ORFS,SAE
Valve StyleFlat Face
Working PressureUp to 5000
Body Size1/4",3/8",1/2",5/8",3/4",1",1 1/4",1 1/2"
Port Size3/8",1/2",5/8",3/4",1",1 1/4",1 1/2"
Port OptionBSP,JICBULKHEAD,NPT,ORFSBULKHEAD,SAE
Max Operating Pressure Coupled (PSI)3915, 4350, 4785, 5075
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)2900, 3625, 4350
