Flat Face Couplers · Skid Steer Hydraulic Couplers

A-PREMIER SERIES

Scraped SKU: 28 2026-06-05 02:45:26

Description

Description

ISO 16028 Interchange

Features
  • Size range: 1/8” thru 1 1/2”
  • Port options: NPT, SAE, JIC, ORFS
  • Interchanges with ISO 16028
  • Working pressure: 27-42 MPa/3915-6090 psi range
  • Lock system stops unwanted disconnect
  • Modular structure for multiple port option
  • Hardened steel, 12 to 20 balls reduce brinelling
Applications
  • Specifically designed for applications needing no-leak performance
  • Ideal for limiting contamination in hydraulic circuit
  • Applications involving high pressure impulses in agriculture equipment, mobile construction equipment, oil & gas exploration, and general industrial plants

Pressure Drop

a premier pressure drop

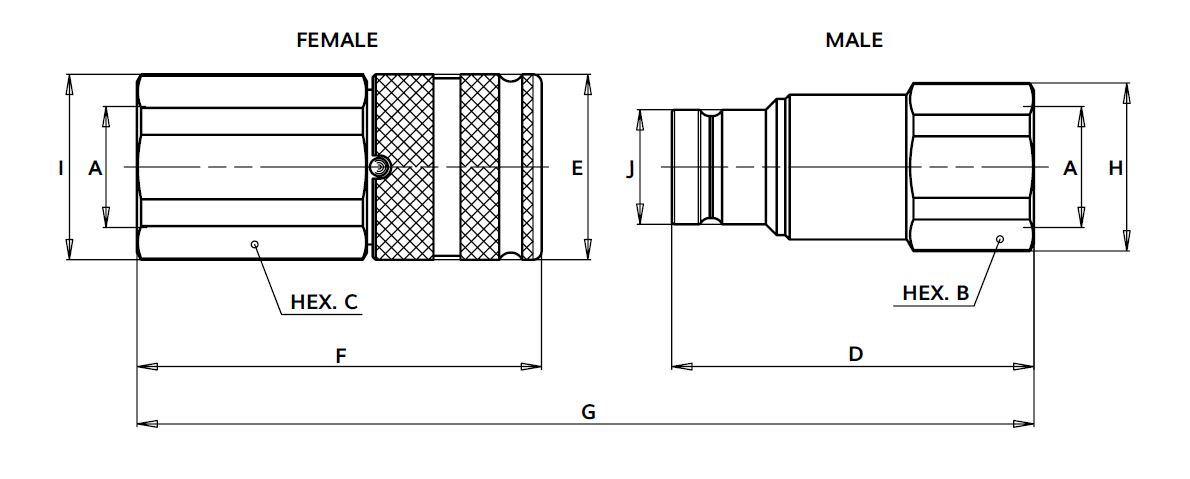

Size Diagram

firg size diagram a premier sizediagram

A Premier Series Accessories Coupler Dust Cap | Nipple Dust Cap

BODY SIZE PORT SIZE ORDER CODE DESCRIPTION
COUPLER / FEMALE DUST CAP NIPPLE / MALE DUST CAP
1/4 1/4 815100000 CAP F. FIRG14/A7 815100001 CAP M. FIRG14/A7
3/8 3/8 815100003 CAP M. FIRG38/A9
3/8 3/8 & 1/2 815100002 CAP F. FIRG38/A9/FIRG12 815100005 CAP M. FIRG12/A9
1/2 1/2 815100004 CAP F. FIRG12A/A13 815100007 CAP M. FIRG12A/A13
1/2 1/2 & 3/4 815100006 CAP F. FIRG34/A13 815100009 CAP M. FIRG34/A13
5/8 3/4 815100008 CAP F. FIRG34B/A15 815100011 CAP M. FIRG34B/A15
3/4 3/4 815100010 CAP F. FIRG100/A17 815100013 CAP M. FIRG100/A17
1 1 815100012 CAP F. FIRG114/A21 815100015 CAP M. FIRG114/A21
1 1/4 1 1/4 815205020 CAP F. A25 815205021 CAP M. A25
1 1/2 1 1/2 815100014 CAP F. FIRG112/A30 815100017 CAP M. FIRG 112/A30
2 2 815100016 CAP F. FIRG 200 815100019 CAP M. FIRG 200

Repair Kits

ORDER CODE DESCRIPTION
A PREMIER SERIES
815700097 KIT M. A9
815700099 KIT M. A13
815700101 KIT M. A15
815700103 KIT M. A17
815700105 KIT M. A21
815700107 KIT M. A30

Variations (115)

801301000

Body Size3/4"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801301001

Body Size3/4"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801301002

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

801301003

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

801301004

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.006

801301005

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801301006

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801301007

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801301008

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801301009

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801301010

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801301011

Body Size1/2"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801301012

Body Size1/2"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801301013

Body Size5/8"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801301014

Body Size5/8"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801301015

Body Size1"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801301016

Body Size1"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801301017

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)11600
Spillage (ml)0.05

801301018

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)10150
Spillage (ml)0.05

801301019

Body Size5/8"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801301020

Body Size5/8"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801301023

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.006

801301024

Body Size1 1/2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)10150
Spillage (ml)0.05

801301025

Body Size1 1/2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)11600
Spillage (ml)0.05

801301028

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801301029

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801301030

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801301031

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801301034

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0-17

801301035

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0-17

801304000

Body Size3/4"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801304001

Body Size3/4"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801304002

Body Size1/8"
Port Size3/16"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

801304003

Body Size1/8"
Port Size3/16"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

801304004

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.006

801304005

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304006

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304007

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304008

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304009

Body Size1/2"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801304010

Body Size1/2"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801304011

Body Size5/8"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801304012

Body Size5/8"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801304013

Body Size1"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801304014

Body Size1"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801304015

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)11600
Spillage (ml)0.05

801304016

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3915
Burst Pressure (PSI)10150
Spillage (ml)0.05

801304017

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.006

801304024

Body Size1/2"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801304025

Body Size1/2"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.02

801304028

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.032

801304029

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801304030

Body Size3/8"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304031

Body Size3/8"
Port Size5/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304035

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801304038

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801304039

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801304042

Body Size1 1/4"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0-17

801304043

Body Size1 1/4"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0-17

801304044

Body Size1/8"
Port Size1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

801304045

Body Size1/8"
Port Size1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)18270
Spillage (ml)0.001

803304004

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803704004

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304037

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

803704006

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304032

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801304033

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801354002

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801354003

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801354004

Body Size1/2"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801354005

Body Size1/2"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306004

Body Size3/8"
Port Size1/2"
Port OptionJIC
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801306005

Body Size3/8"
Port Size1/2"
Port OptionJIC
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801306014

Body Size3/8"
Port Size1/2"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801306015

Body Size3/8"
Port Size1/2"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

803306006

Body Size1/2"
Port Size1/2"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306031

Body Size1/2"
Port Size1/2"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803306000

Body Size1/2"
Port Size5/8"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306017

Body Size1/2"
Port Size5/8"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306024

Body Size1/2"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306025

Body Size1/2"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801306026

Body Size5/8"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801306027

Body Size5/8"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801306028

Body Size3/4"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801306029

Body Size3/4"
Port Size3/4"
Port OptionJIC BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

803706002

Body Size1/2"
Port Size5/8"
Port Optionjic-internal
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803706003

Body Size1/2"
Port Size5/8"
Port Optionjic-internal
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313012

Body Size3/8"
Port Size3/8"
Port OptionORFS
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801313013

Body Size3/8"
Port Size3/8"
Port OptionORFS
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801313014

Body Size3/8"
Port Size3/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801313015

Body Size3/8"
Port Size3/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.012

801313016

Body Size1/2"
Port Size1/2"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313017

Body Size1/2"
Port Size1/2"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313018

Body Size1/2"
Port Size1/2"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313019

Body Size1/2"
Port Size1/2"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803313000

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313001

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803313006

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313029

Body Size1/2"
Port Size5/8"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803313002

Body Size1/2"
Port Size3/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313005

Body Size1/2"
Port Size3/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

803313004

Body Size1/2"
Port Size1"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313007

Body Size1/2"
Port Size1"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.02

801313020

Body Size5/8"
Port Size3/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801313021

Body Size5/8"
Port Size3/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801313022

Body Size5/8"
Port Size3/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801313023

Body Size5/8"
Port Size3/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.026

801313008

Body Size3/4"
Port Size1"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801313009

Body Size3/4"
Port Size1"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801313010

Body Size3/4"
Port Size1"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801313011

Body Size3/4"
Port Size1"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Spillage (ml)0.032

801313024

Body Size1"
Port Size1 1/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801313025

Body Size1"
Port Size1 1/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801313026

Body Size1"
Port Size1 1/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

801313027

Body Size1"
Port Size1 1/4"
Port OptionORFS BULKHEAD
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)11600
Spillage (ml)0.035

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsJIC,NPT,ORFS,SAE
Valve StyleFlat Face
Working PressureUp to 5000,5000-9000
Body Size1/8",1/4",3/8",1/2",5/8",3/4",1",1 1/4",1 1/2"
Port Size1/8",1/4",3/8",1/2",5/8",3/4",1",1 1/4",1 1/2"
Port OptionJIC, JIC BULKHEAD,NPT,ORFS, ORFS BULKHEAD,SAE
Max Operating Pressure Coupled (PSI)3915, 4350, 4785, 5075, 6090
Burst Pressure (PSI)10150, 11600, 14500, 18270
Spillage (ml)0.001, 0.006, 0.016, 0.017, 0.02, 0.026, 0.032, 0.035, 0.05

PDF Documents

No PDF documents.
