Poppet Interchange Couplers

SH SERIES

Scraped SKU: 255 2026-06-05 02:45:27

Description

Description

H‐IH Interchange

FEATURES
  • Size range: 1/4” thru 2”
  • Port options: NPT
  • Interchanges with Snap-Tite H, Faster TNV, Dixon V
  • Working pressure: 19-35 MPa/2755-5075 psi range
  • Simple-to-use, compact design
  • Machined components from high-strength steel
  • PTFE anti-extrusion ring to protect seal components
APPLICATIONS
  • General purpose coupler used across various applications
  • Anywhere high resistance to impulse pressures is needed

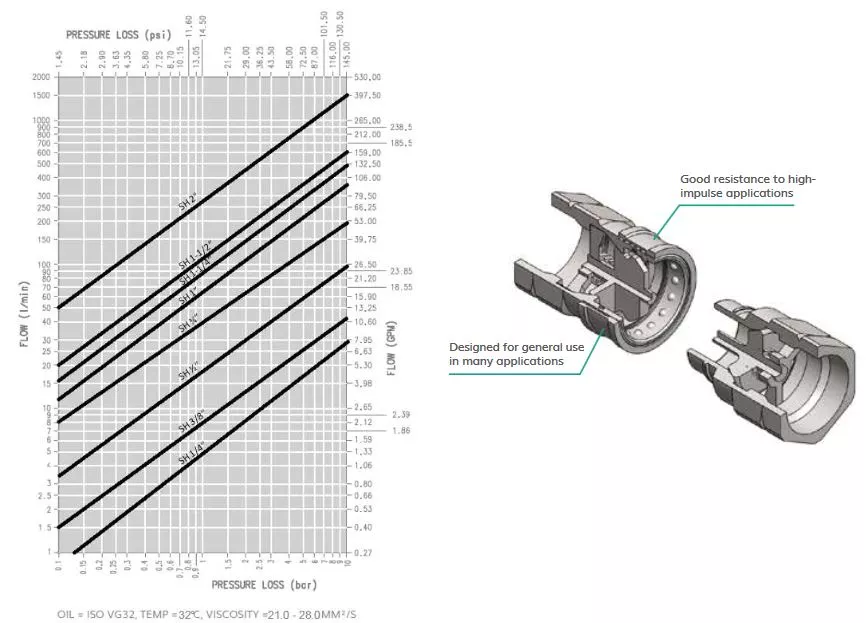

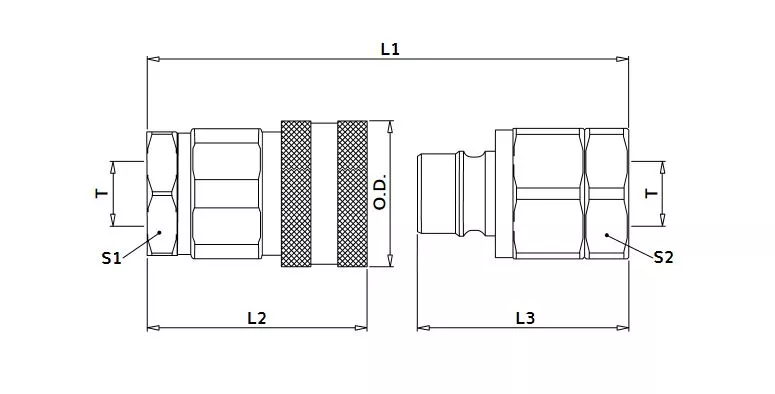

Size Diagram

sh size diagram

Size Diagram

sh sizes

SH Series Accessories Coupler Dust Plug | Nipple Dust Cap

SIZE ISO ORDER CODE FEMALE DUST PLUG ORDER CODE MALE DUST CAP COLOR MATERIAL
1/4 6.3 KSS-04F-PVC KSS-04M-PVC BLACK PLASTIC
3/8 10 KSS-06F-PVC KSS-06M-PVC BLACK PLASTIC
1/2 12.5 KSS-08F-PVC KSS-08M-PVC BLACK PLASTIC
3/4 20 KSS-12F-PVC KSS-12M-PVC BLACK PLASTIC
1 25 KSS-16F-PVC KSS-16M-PVC BLACK PLASTIC

Variations (16)

SH-04-04C-NPT

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)25520
Spillage (ml)0.5

SH-04-04N-NPT

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)21895
Spillage (ml)0.5

SH-06-06C-NPT

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)22040
Spillage (ml)1.9

SH-06-06N-NPT

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)21315
Spillage (ml)1.9

SH-08-08C-NPT

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)21170
Spillage (ml)2.7

SH-08-08N-NPT

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)2.7

SH-12-12C-NPT

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)22185
Spillage (ml)9.3

SH-12-12N-NPT

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)13050
Spillage (ml)9.3

SH-16-16C-NPT

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)13920
Spillage (ml)16

SH-16-16N-NPT

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)18850
Spillage (ml)16

SH-20-20C-NPT

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)12325
Spillage (ml)30

SH-20-20N-NPT

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)16530
Spillage (ml)30

SH-24-24C-NPT

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2755
Burst Pressure (PSI)11455
Spillage (ml)54

SH-24-24N-NPT

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2755
Burst Pressure (PSI)11745
Spillage (ml)54

SH-32-32C-NPT

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2755
Burst Pressure (PSI)13920
Spillage (ml)120

SH-32-32N-NPT

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2755
Burst Pressure (PSI)9425
Spillage (ml)120

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsNPT
Valve StylePoppet
Working PressureUp to 5000
Body Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2755, 2900, 3625, 5075
Burst Pressure (PSI)11445, 11745, 12325, 13050, 13920, 14500, 16530, 18850, 21170, 21315, 21895, 22040, 22185, 25520, 9425
Spillage (ml)0.5, 1.9, 120, 16, 2.7, 30, 54, 9.3
