Poppet Interchange Couplers

IRC SERIES

Scraped SKU: 254 2026-06-05 02:45:27

Description

Description

EURO Poppet Interchange

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT, BSP
  • Interchanges with Tema T
  • Working pressure: 33-60 MPa/4785-8700 psi range
  • Compact design
  • Internal parts designed to reduce turbulence and pressure drop
  • Additional O-ring for extra sealing capacity and to contain spray
APPLICATIONS
  • Anywhere requiring high resistance to pressure impulses
  • Mobile machinery
  • Chemical industries, industrial plants and material handling

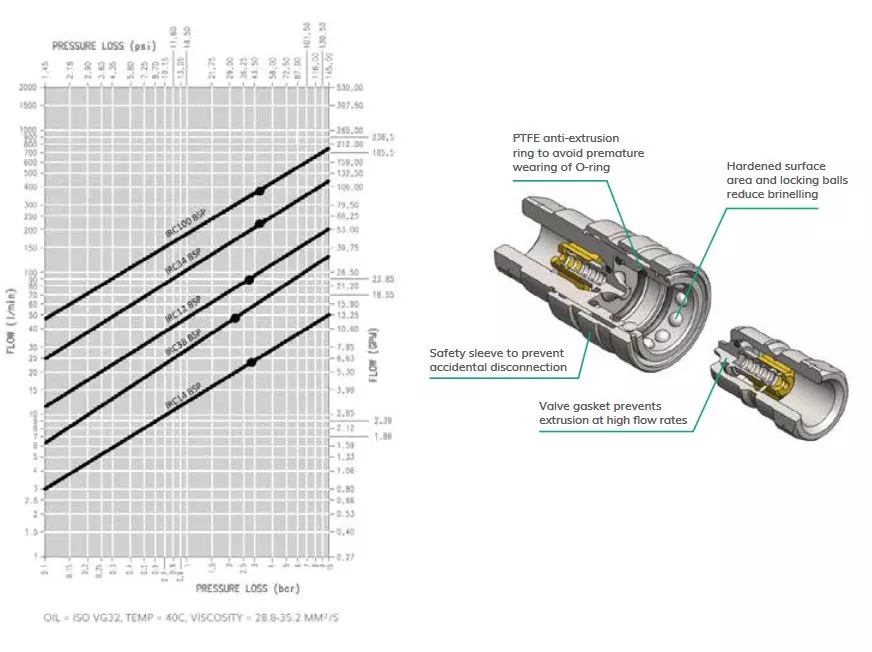

Pressure Drop

irc pressure drop

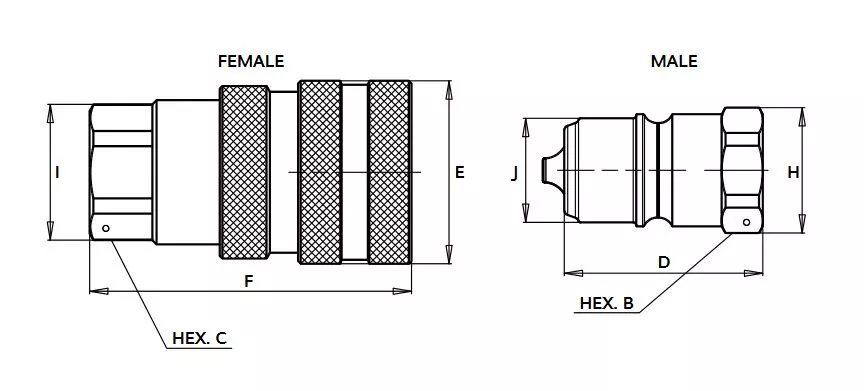

Size Diagram

irc size diagram

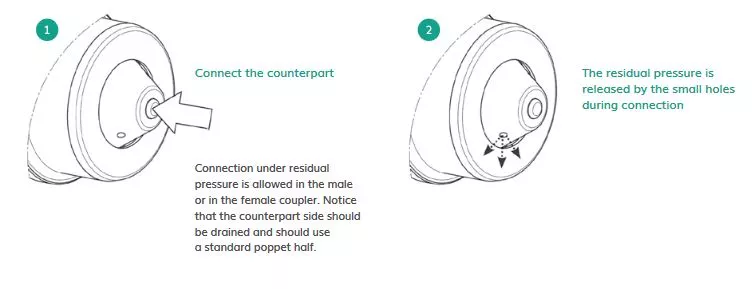

Connect Under Pressure Diagram

Variations (24)

807900006

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600

807900007

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600

807900008

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500

807900009

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500

807900014

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)5365

807900015

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)5365

807902000

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)8700
Burst Pressure (PSI)17400

807902001

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)8700
Burst Pressure (PSI)17400

807902002

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6670
Burst Pressure (PSI)15950

807902003

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6670
Burst Pressure (PSI)15950

807902004

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500

807902005

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500

807902006

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600

807902007

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600

807902008

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500

807902009

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500

807902010

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6670
Burst Pressure (PSI)15950
Max Residual Pressure During Connection (PSI)6670

807902011

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6670
Burst Pressure (PSI)15950
Max Residual Pressure During Connection (PSI)6670

807902012

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)5800

807902013

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)5800

807902014

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)5365

807902015

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5365
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)5365

807902016

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)4785

807902017

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4785
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)4785

Specifications

WeightN/A
DimensionsN/A
Port OptionsBSP,NPT
Valve StylePoppet
Working PressureUp to 5000
MaterialCarbon
Port Size1/4",3/8",1/2",3/4",1"
Port OptionBSP,NPT
Max Operating Pressure Coupled (PSI)4785, 5365, 5800, 6670, 8700
Burst Pressure (PSI)11600, 14500, 15950, 17400
Max Residual Pressure During Connection (PSI)4785, 5365, 5800, 6670
Spillage (ml)0.11, 0.13, 0.22, 0.43, 0.49, 0.72, 0.78, 1.27, 2.14
