High-Pressure-10000-PSI

IVHP SERIES

Scraped SKU: 305 2026-06-05 02:45:25

Description

Description

Enerpac / Hydraulic Jack, Parker 3000 Interchange

FEATURES
  • Size range: 1/4” thru 3/8”
  • Port options: NPT
  • Interchanges with Enerpac/Hydraulic Jack, Parker 3000
  • Working pressure: 700 bar/10,000 psi
  • Threaded sleeve for connection/disconnection
APPLICATIONS
  • Construction equipment
  • Emergency cutting tools, hydraulic wrenches, tools

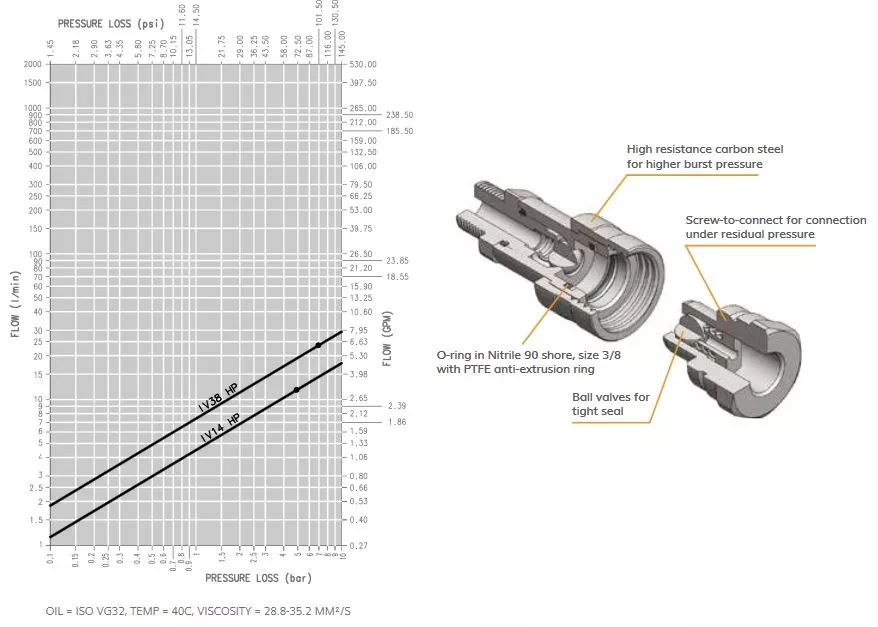

Pressure Drop

ivhp pressure drop

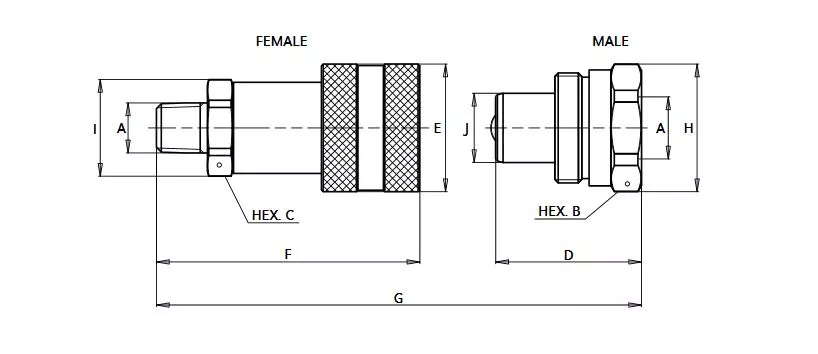

Size Diagram

ivhp size diagram

IVHP Series Accessories Metal and Plastic Caps

DESCRIPTION ORDER CODE
IVHP METAL CAPS
CAP F. IV38HP 815605002
CAP M. IV38HP 815605003
CAP F. IV14HP 815605004
CAP M. IV14HP 815605005
IVHP PLASTIC CAPS
CAP F. IV14HP BLACK PLASTIC 815603010
CAP M. IV14HP BLACK PLASTIC 815603011
CAP F. IV38HP BLACK PLASTIC 815603012
CAP M. IVHP38 BLACK PLASTIC 815603013

ivhp cap plug reference

Variations (7)

800201004

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)33570

800201005

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)33570

800201006

Body Size3/8"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)33570

800201008

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)35000

800201010

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)35000

800201014

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)33570

800201034

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)35000

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsNPT
Valve StylePoppet
Working Pressure10,000
Body Size1/4",3/8"
Port Size1/4",3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)10150
Burst Pressure (PSI)33570, 35000
Spillage (ml)0.3, 0.31, 0.47, 0.49
