Poppet Interchange Couplers

I-IP SERIES

Scraped SKU: 253 2026-06-05 02:45:27

Description

Description

ISO A Interchange

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT, SAE, BSP, DIN
  • Interchanges with Faster CPV–CPN, Parker 4200
  • Working pressure: 25-35 MPa/3571-5076 psi range
  • Poppet valve shut-off system
  • Push pull mounting feature
APPLICATIONS
  • Anywhere quick-release push pull connection is required
  • Suitable for flexible hose connection
  • Agricultural, mobile construction and industrial plants

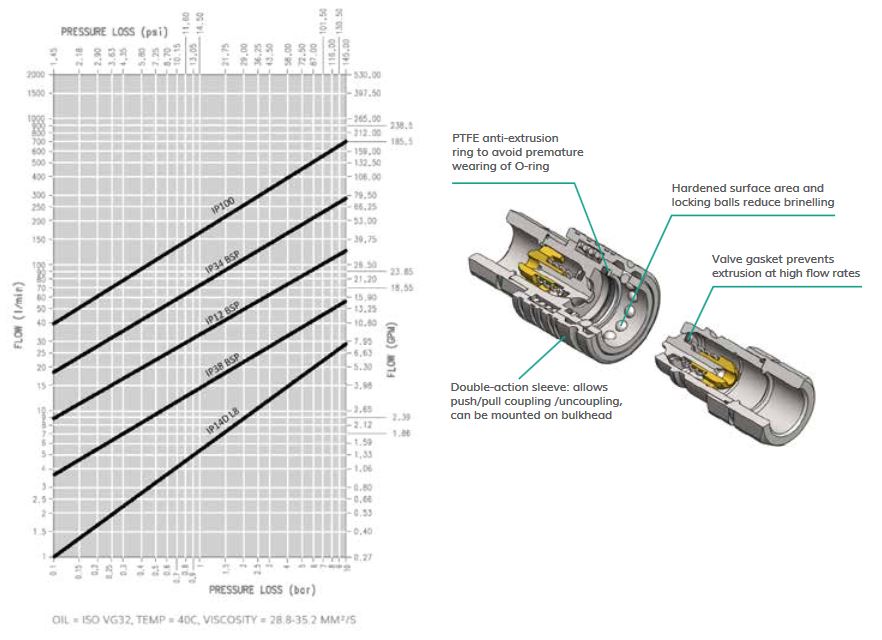

Pressure Drop

i ip pressure drop

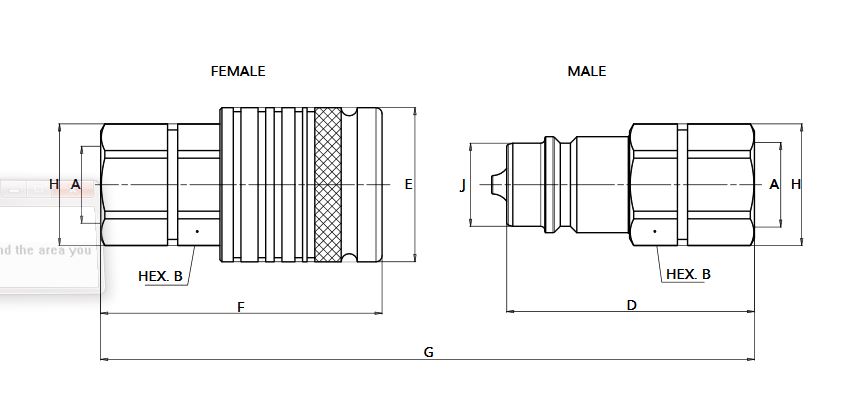

Size Diagram

i ip size diagram

Variations (19)

809400000

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400001

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400002

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400003

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400004

Body Size1/2"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400007

Body Size1/2"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809400008

Body Size3/8"
Port Size1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400009

Body Size3/8"
Port Size1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400010

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400011

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400012

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400013

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4568
Spillage (ml)1.2

809400014

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)5.2

809400015

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)5.2

809400016

Body Size1"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)9

809400018

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)9

809400019

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)9

809401000

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

809401001

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Spillage (ml)2.1

Specifications

WeightN/A
DimensionsN/A
Port OptionsBSP,DIN,NPT,SAE
Valve StylePoppet
Working PressureUp to 5000
Body Size1/4",3/8",1/2",5/8",3/4",1"
Port Size1/4",3/8",1/2",5/8",3/4",1"
Port OptionBSP,NPT
Max Operating Pressure Coupled (PSI)3625, 4568
Spillage (ml)1.2, 2.1, 5.2, 9
