Poppet Interchange Couplers

AG INTERCHANGE IR I IRV I IRS SERIES

Scraped SKU: 251 2026-06-05 02:45:27

Description

Description

ISO B Interchange

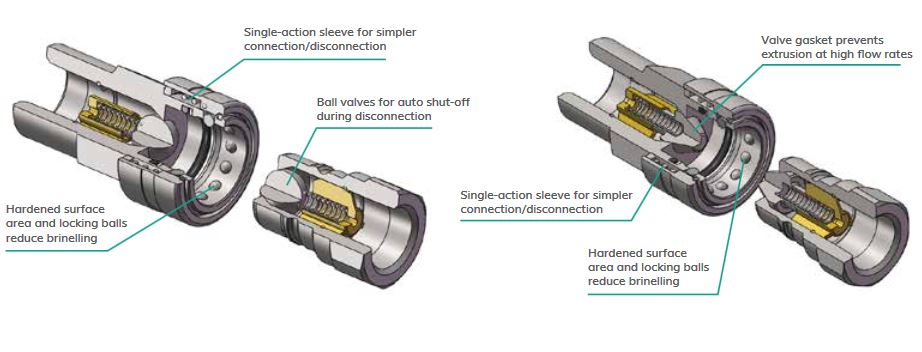

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT
  • Interchanges with Agriculture/ISO 5675
  • Working pressure: 20-30 MPa/2900-4350 psi range
  • Carbon steel with zinc plating
  • Hardened steel nipple
  • Ball or poppet sealing valve
APPLICATIONS
  • Anywhere automatic shut off during disconnection is required
  • Where interchangeability with existing equipment is necessary
  • Agricultural equipment

Pressure Drop

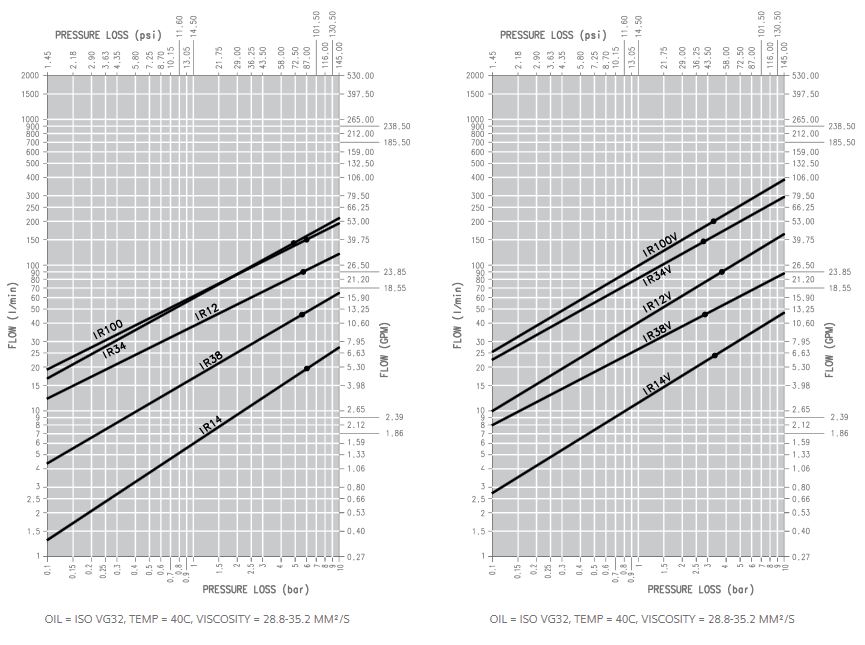

ag pressure drop chart
ag pressure drop diagram

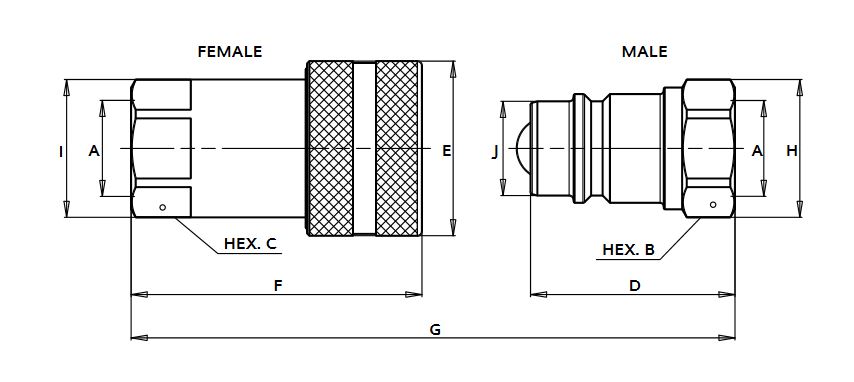

IR Size Diagram

ag size diagram

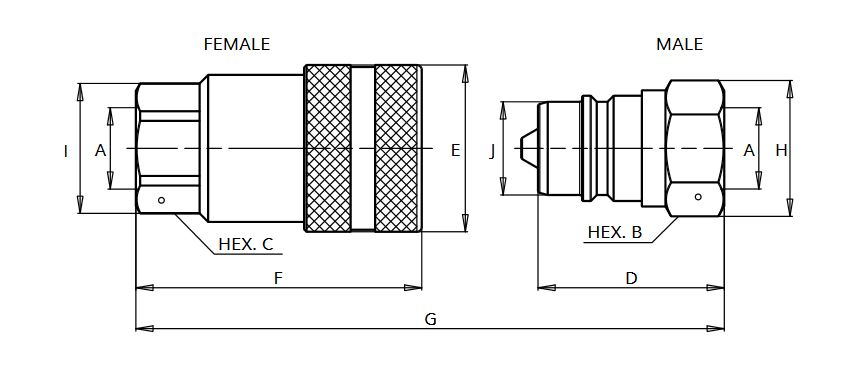

IRV Size Diagram

irv size diagram



IR and IRV Accessories Coupler Dust Plug | Nipple Dust Cap

PART ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
IR & IRV COUPLER DUST PLUGS IR & IRV COUPLER DUST CAPS
1/4 815000000 CAP F. IR14/IR14V 815000001 CAP M. IR14/IR14V
3/8 815000002 CAP F. IR38/IR38V 815000003 CAP M. IR38/IR38V
1/2 815000004 CAP F. IR12/IRS12/F. BIR12 815000005 CAP M. IR1/M. BIR12
3/4 815000006 CAP F. IR 34/IR34V 815000007 CAP M. IR34/IR34V
1 815000008 CAP F. IR 100/IR100V 815000009 CAP M. IR100/IR100V

Variations (28)

800101000

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.33

800101001

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.33

800101002

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)1.3

800101003

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)1.3

800101004

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)4.2

800101005

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)13050
Spillage (ml)4.2

800101006

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)5.5

800101007

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)5.5

820001023

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)13050
Spillage (ml)4.2

800104000

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.33

800104001

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.33

800401002

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)2.3

804304004

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)2.3

800401004

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Max Residual Pressure During Connection (PSI)3525
Spillage (ml)2.3

804304002

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Max Residual Pressure During Connection (PSI)3525
Spillage (ml)2.3

800001011

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)2.3

800001000

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.13

800001001

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0.13

800001002

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)13050
Spillage (ml)0-45

800001003

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)0-45

800001004

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)2.3

800001005

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)2.3

800001006

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)13050
Spillage (ml)4.5

800001007

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)8700
Spillage (ml)4.5

800001008

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)6

820001020

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)13050
Spillage (ml)4.5

820001021

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)8700
Spillage (ml)4.5

800301002

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)7975
Spillage (ml)0

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsNPT
Valve StylePoppet
Working PressureUp to 5000
Body Size1/4",3/8",1/2",3/4",1"
Port Size1/4",3/8",1/2",3/4",1"
Port OptionNPT,SAE
Max Operating Pressure Coupled (PSI)2900, 3625, 4350
Burst Pressure (PSI)11600, 13050, 14500, 7975
Max Residual Pressure During Connection (PSI)3525
Spillage (ml)0, 0.013, 0.33, 1.3, 2.3, 4.2, 4.5, 5.5, 6
