Poppet Interchange Couplers

IRB I IRBO I IRBX SERIES

Scraped SKU: 250 2026-06-05 02:45:27

Description

Description

ISO B Interchange

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT, BSP
  • Interchanges with ISO B, Parker 60, Aeroquip FD45, Faster HNV
  • IRB working pressure: 18-35 MPa/4000-5075 psi range
  • IRBO working pressure: 10-20 MPa/1450-2900 psi range
  • IRBX working pressure: 12.5-25 MPa/1813-3625 psi range
APPLICATIONS
  • Anywhere a compact size and high quality material are required
  • Industrial process applications, agricultural equipment, oil & gas industry

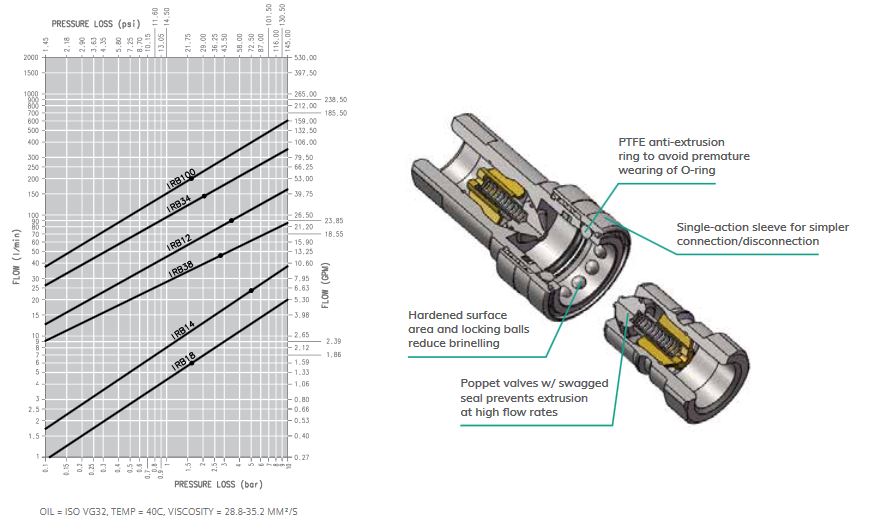

Pressure Drop

irb pressure drop

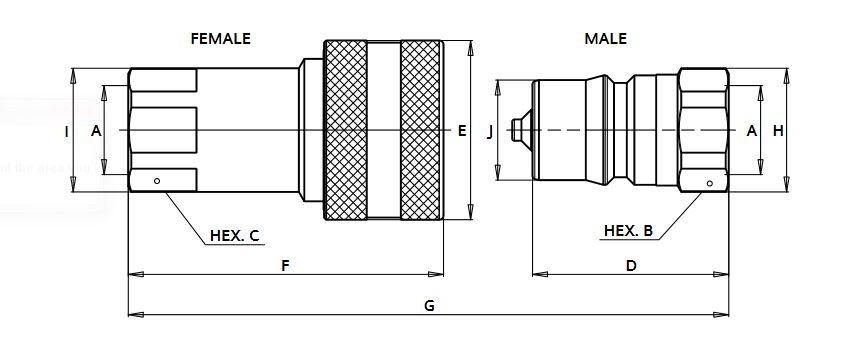

Size Diagram

irb size diagram

ISO B IRB Series Accessories Coupler Dust Plug | Nipple Dust Cap

PART ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
ISO B IRB DUST CAP ISO B IRB DUST PLUG
1/4 815000031 CAP M. IRB18 815000030 CAP F. IRB18
1/4 815000033 CAP M. IRB14 815000032 CAP F. IRB14
3/8 815000035 CAP M. IRB38 815000034 CAP F. IRB38
1/2 815000037 CAP M. IRB12 815000036 CAP F. IRB12
3/4 815000039 CAP M. IRB34 815000038 CAP F. IRB34
1 815000041 CAP M. IRB100 815000040 CAP F. IRB100

Repair Kits

ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
ISO B IRB SERIES ISO B IRB SERIES (CONT.)
815700202 KIT F. IRB18 815700210 KIT F. IRB34
815700204 KIT F. IRB14 815700212 KIT F. IRB100
815700206 KIT F. IRB38 815700211 KIT M./F. IRB34
815700208 KIT F. IRB12 815700213 KIT M./F. IRB100

Variations (37)

804601100

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)0.18

804601101

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)0.18

804601102

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)0.33

804601103

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)0.33

804601104

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)2.2

804601105

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)2.2

804601106

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)3

804601107

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)11600
Spillage (ml)3

804601108

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)9280
Spillage (ml)9.4

804601109

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)9280
Spillage (ml)9.4

804601110

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1813
Burst Pressure (PSI)7250
Spillage (ml)14

804601111

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1813
Burst Pressure (PSI)7250
Spillage (ml)14

800601000

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Spillage (ml)0.18

800601001

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)17400
Spillage (ml)0.18

800601002

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.33

800601004

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)2.2

800601005

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)2.2

800601006

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4060
Burst Pressure (PSI)14500
Spillage (ml)3

800601007

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4060
Burst Pressure (PSI)14500
Spillage (ml)3

800601008

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)13340
Spillage (ml)9.4

800601009

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)13340
Spillage (ml)9.4

800601010

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2610
Burst Pressure (PSI)10440
Spillage (ml)14

800601011

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2610
Burst Pressure (PSI)10440
Spillage (ml)14

800604202

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.33

800604201

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)14500
Spillage (ml)0.33

804501100

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)14500
Spillage (ml)0.18

804501101

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)14500
Spillage (ml)0.18

804501102

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)14500
Spillage (ml)0.33

804501103

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2900
Burst Pressure (PSI)14500
Spillage (ml)0.33

804501104

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)11600
Spillage (ml)2.2

804501105

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)10150
Spillage (ml)2.2

804501106

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)11600
Spillage (ml)3

804501107

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2320
Burst Pressure (PSI)10150
Spillage (ml)3

804501108

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1813
Burst Pressure (PSI)8700
Spillage (ml)9.4

804501109

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1813
Burst Pressure (PSI)6525
Spillage (ml)9.4

804501110

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1450
Burst Pressure (PSI)5800
Spillage (ml)14

804501111

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1450
Burst Pressure (PSI)5800
Spillage (ml)14

Specifications

WeightN/A
DimensionsN/A
MaterialBrass,Carbon,Stainless
Port OptionsBSP,NPT
Valve StylePoppet
Working PressureUp to 5000
Body Size1/8",1/4",3/8",1/2",3/4",1"
Port Size1/8",1/4",3/8",1/2",3/4",1"
Port OptionNPT,SAE
Max Operating Pressure Coupled (PSI)1813, 2320, 2610, 2900, 3335, 3625, 4060, 4350, 5075
Burst Pressure (PSI)10150, 10440, 11600, 13340, 14500, 17400, 5800, 6525, 7250, 8700, 9280
Spillage (ml)0.18, 0.33, 14, 2.2, 3, 9.4
