Poppet Interchange Couplers

BIR SERIES

Scraped SKU: 248 2026-06-05 02:45:27

Description

Description

ISO A Interchange

FEATURES
  • Size range: 1/4” thru 2”
  • Port options: NPT, SAE, BSP
  • Interchanges with ISO A
  • Working pressure: 13-35 MPa/1885-5075 psi range
  • Positive-stop valving prevents flow checking
  • Large diameter hardened steel sleeves resist deformation for maximum life
  • Suitable for open or closed center hydraulic system
APPLICATIONS
  • Various fields of hydraulic applications
  • Agricultural and mobile equipment
  • Industrial plants

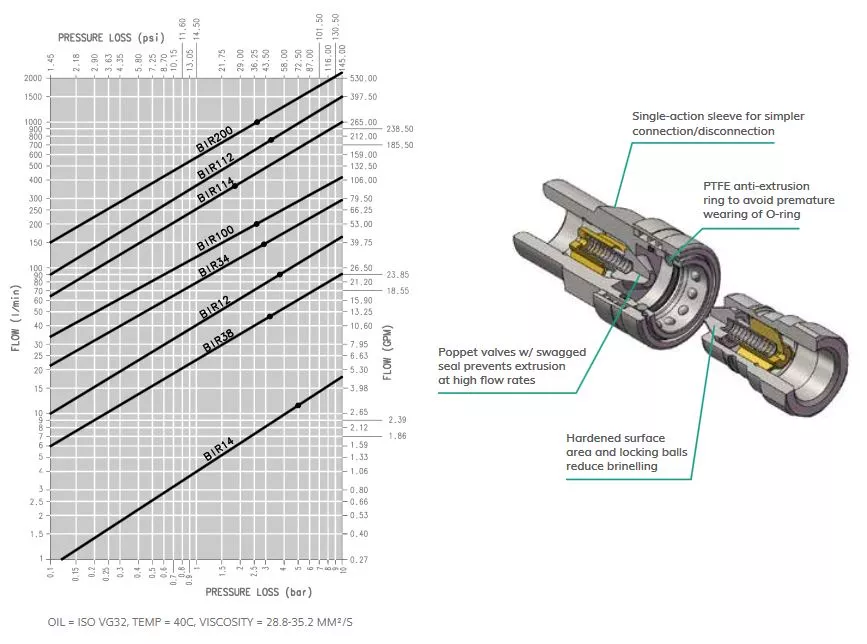

Pressure Drop

bir pressure drop

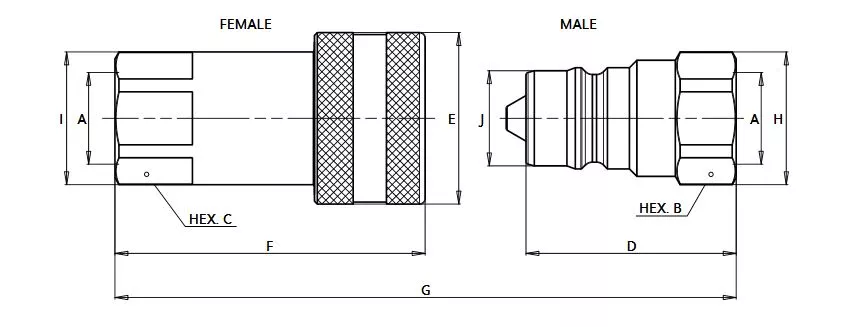

Size Diagram

bir size diagram

Repair Kits

ORDER CODE DESCRIPTION
BIR SERIES
815700170 KIT F. BIR14
815700172 KIT F. BIR38
815700174 KIT F. BIR12
815700176 KIT F. BIR34
815700178 KIT F. BIR100
815700180 KIT F. BIR114
815700182 KIT F. BIR112
815700184 KIT F. BIR200
815700177 KIT M./F. BIR34
815700179 KIT M./F. BIR100
815700181 KIT M./F. BIR114
815700183 KIT M./F. BIR112
815700185 KIT M./F. BIR200

ISO A BIR Series Accessories Coupler Dust Plug | Nipple Dust Cap

PART ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
ISO A BIR COUPLER DUST PLUGS ISO A BIR COUPLER DUST CAPS
1/4 815000012 CAP F. BIR14 815000013 CAP M. BIR14
3/8 815000014 CAP F. BIR38 815000015 CAP M. BIR38
1/2 815000004 CAP F. BIR12 815000005 CAP M. BIR12
3/4 815000016 CAP F. BIR34 815000017 CAP M. BIR34
1 815000018 CAP F. BIR100 815000019 CAP M. BIR100

Variations (26)

800501000

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)18270
Spillage (ml)0.7

800501001

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)18270
Spillage (ml)0.7

800501002

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)1.2

800501003

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)1.2

800501004

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)2.1

800501005

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)11600
Spillage (ml)2.1

800501006

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)5.2

800501007

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)5.2

800501008

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)9

800501009

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)9

800501010

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)27

800501011

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)27

800501012

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2610
Burst Pressure (PSI)9280
Spillage (ml)49

800501013

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2610
Burst Pressure (PSI)9280
Spillage (ml)49

800501014

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1885
Burst Pressure (PSI)5800
Spillage (ml)75

800501015

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)1885
Burst Pressure (PSI)5800
Spillage (ml)75

800504004

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)2.1

800504005

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)11600
Spillage (ml)2.1

800504006

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)5.2

800504007

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)5.2

800504008

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)9

800504009

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3335
Burst Pressure (PSI)11600
Spillage (ml)9

805601000

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)2.1

805601001

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)11600
Spillage (ml)2.1

805604000

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500
Spillage (ml)2.1

805604001

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)11600
Spillage (ml)2.1

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsBSP,NPT,SAE
Valve StylePoppet
Working PressureUp to 5000
Body Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionNPT,SAE
Max Operating Pressure Coupled (PSI)1885, 2610, 3335, 3625, 4350, 5075
Burst Pressure (PSI)11600, 14500, 18270, 5800, 9280
Spillage (ml)0.7, 1.2, 2.1, 27, 49, 5.2, 75
