Description

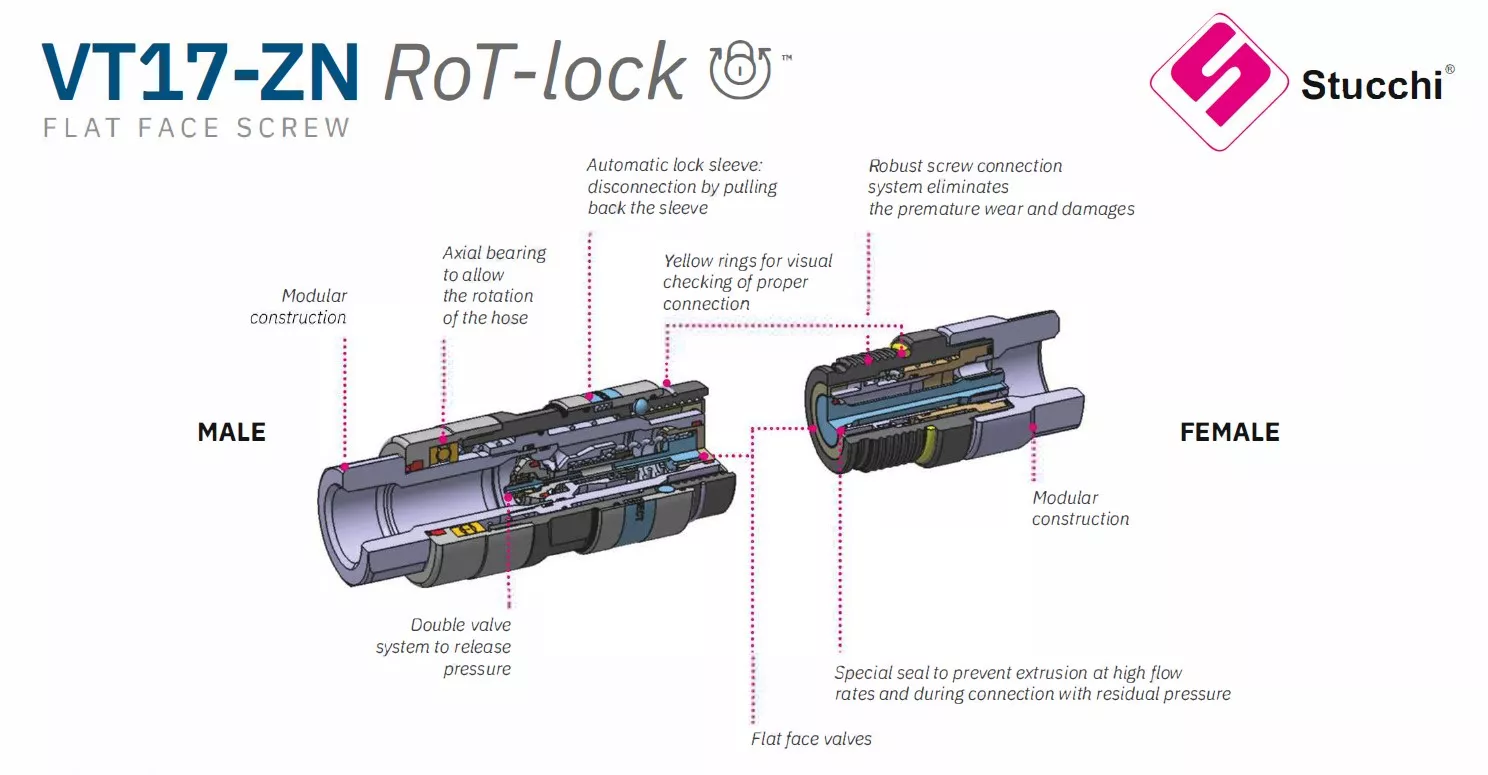

Flat Face Screw Coupler
FEATURES
- Size range: 1″
- Port options: NPT
- Interchanges with Stucchi profile
- Operating pressure: 500 bar
- Automatic locking sleeve to prevent unwanted disconnection.
- Integrated live swivel on male coupling.
- Optimized connection thread to reduce the number of turns to connect.
- Connection with residual pressure allowed on both sides
APPLICATIONS
- Specifically designed for applications needing no-leak performance
- Ideal for limiting contamination in hydraulic circuit
- Applications involving high pressure impulses and high vibration, or where a redundant locking system is required.

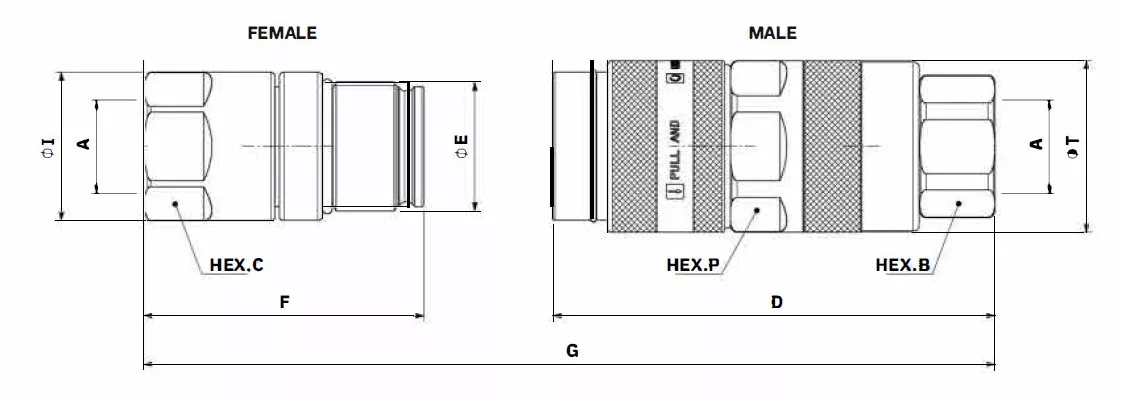

Size Diagram
