VEPHDL SERIES

Scraped SKU: 219 2026-06-05 02:45:28

Description

Description

Connect/Disconnect Under High Residual Pressure with Locking Pin

FEATURES
  • Size range: 3/4” thru 1 1/4”
  • Port options: NPT, SAE, Code 62 Flange Ports
  • Interchanges with VEPHD, VEP
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Working pressure: 40-50 MPa/5800-7975 psi range
  • Locking heavy duty series with visual connection indicator
  • Failsafe leak-free connection
APPLICATIONS
  • Most demanding hydraulic applications: high pressure, high impulse
  • Heavy duty applications where vibrations and torsion are present
  • Mobile excavation and construction: backhoes, loaders, excavators
  • Anywhere failsafe connection is critical

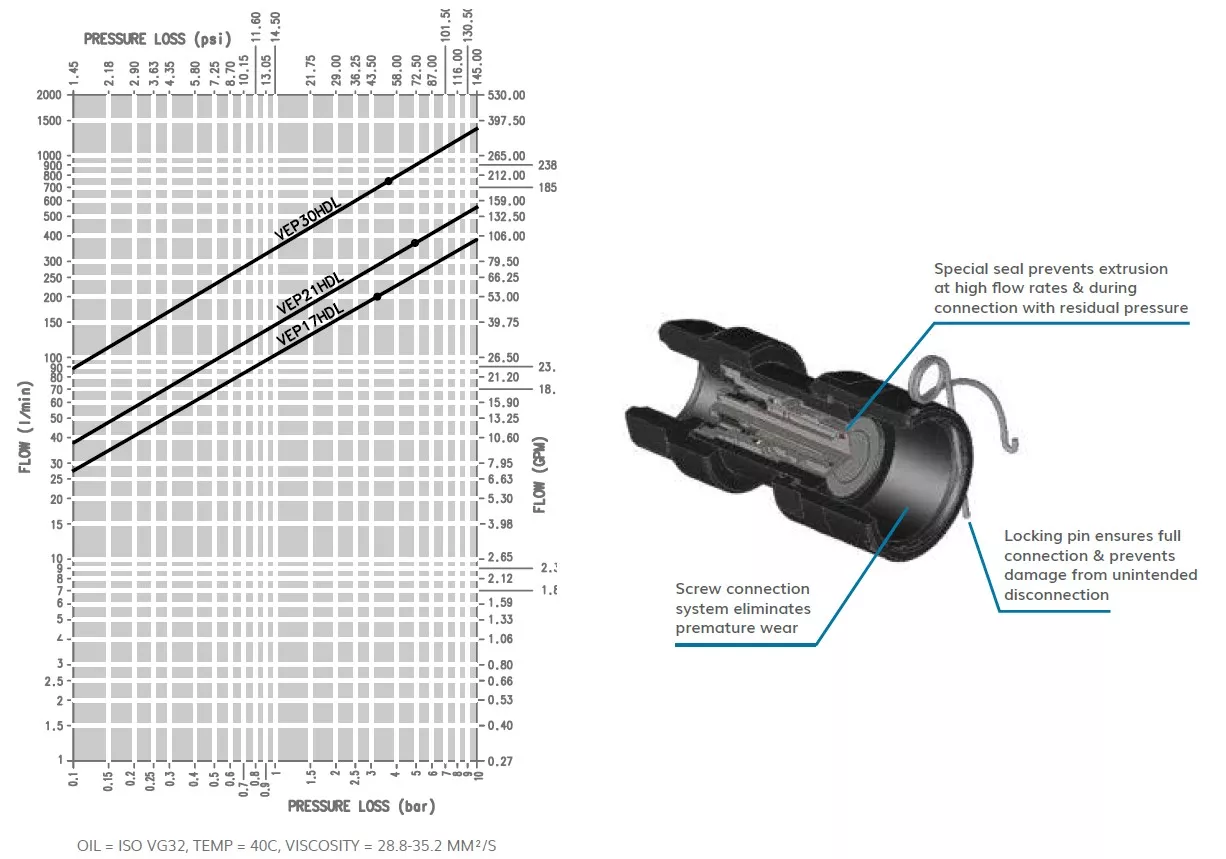

Pressure Drop

vephdl pressure drop

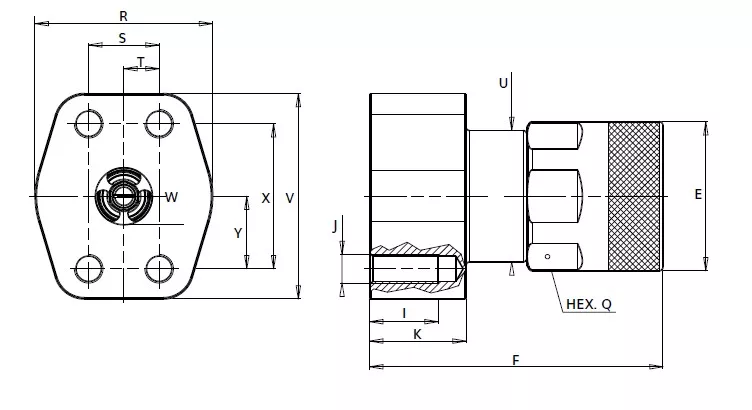

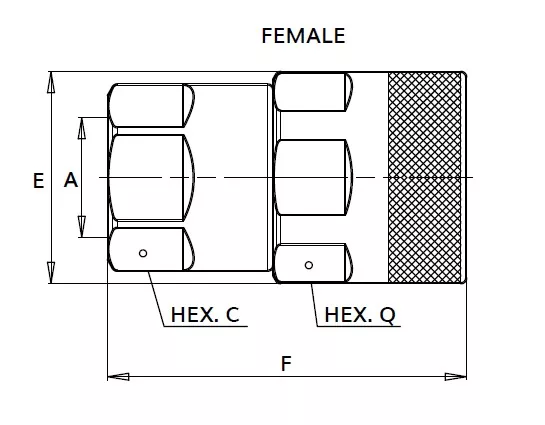

Size Diagram

vephdl size diagram

Size Diagram VEPHD Flange Pad

vephdl flange pad



Replacement Lock Pin
SIZE ORDER CODE DESCRIPTION
3/4 815701236 VEPHDL 15 LOCK PIN
1 815701236 VEPHDL 17 LOCK PIN
1 1/4 815701187 VEPHDL 21 LOCK PIN
1 1/2 815701188 VEPHDL 30 LOCK PIN

Variations (15)

810900008

Port Size1 1/4"
Body Size1 1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810901000

Port Size1 1/4"
Body Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810901002

Port Size1 1/2"
Body Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

810901004

Port Size1"
Body Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

810901006

Port Size3/4"
Body Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

810904000

Port Size1 1/4"
Body Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810904002

Port Size1 1/2"
Body Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

810904004

Port Size1"
Body Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

810904006

Port Size3/4"
Body Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

810924002

Port Size1 1/4"
Body Size1 1/4"
Port OptionCODE 62 FLANGE HEAD
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810924004

Port Size1 1/4"
Body Size1 1/4"
Port Optioncode-62-flange-pad-metric
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810924008

Port Size1 1/2"
Body Size1 1/2"
Port Optioncode-62-flange-pad
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

810924010

Port Size1 1/2"
Body Size1 1/2"
Port OptionCODE 62 FLANGE HEAD
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

810924012

Port Size1 1/4"
Body Size1 1/4"
Port Optioncode-62-flange-pad
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

810924038

Port Size1 1/4"
Body Size1 1/2"
Port OptionCODE 62 FLANGE HEAD
Max Operating Pressure Coupled (PSI)6090
Burst Pressure (PSI)11600
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

Specifications

WeightN/A
DimensionsN/A
Port OptionsFlange,NPT,SAE
Valve StyleFlat Face
Working Pressure5000-9000
MaterialCarbon
Port Size3/4",1",1 1/4",1 1/2"
Body Size3/4",1",1 1/4"
Port OptionCODE 62 FLANGE HEAD,NPT,SAE
Max Operating Pressure Coupled (PSI)5800, 6090, 6815, 7250, 7975
Burst Pressure (PSI)11600, 14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018, 0.033, 0.06, 0.2
