Check Valves

VUZ Series

Scraped SKU: 309 2026-06-05 02:45:26

Description

Description

FEATURES
  • Size range: 1/8” thru 2”
  • Port options: NPT, SAE
  • Standard SAE threads
  • Standard crack 5 psi and 65 psi; various crack pressures optional
  • Material: high strength carbon steel with zinc plating
APPLICATIONS
  • Any type of hydraulic circuit
  • Any hydraulic application using non-corrosive liquids

Pressure Drop

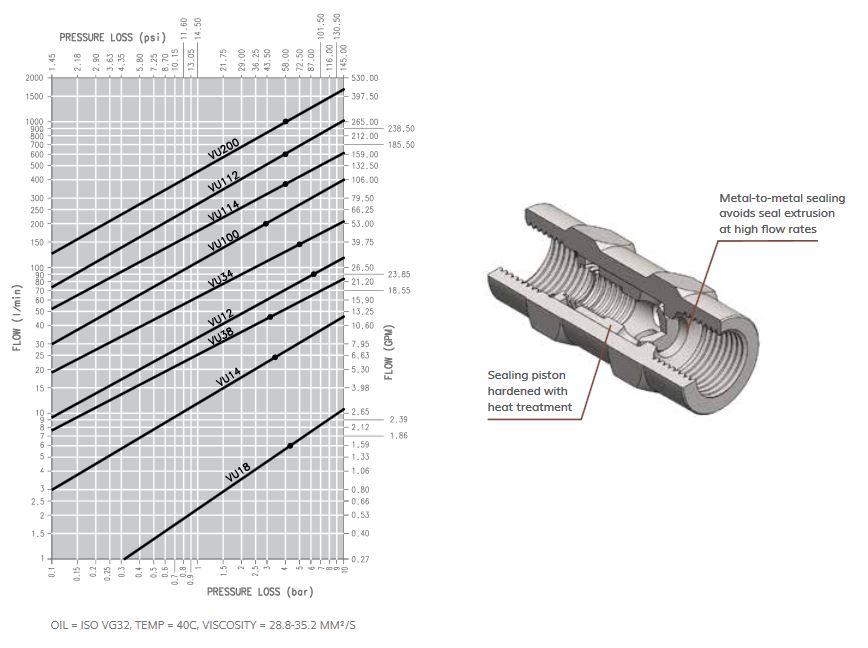

vu pressure drop

Temperature range: from -20 C (-4 F) to 120 oC (248 F)

Size Diagram

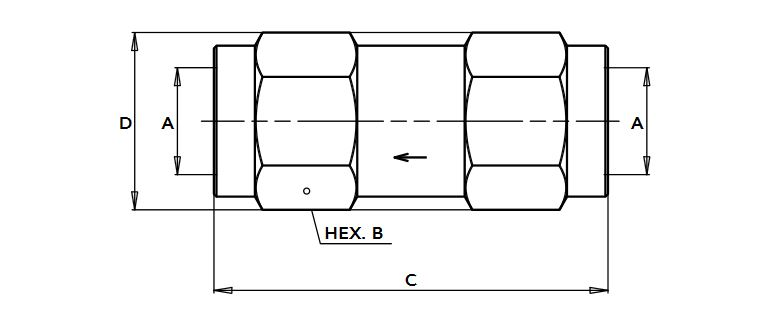

vu size diagram



Variations (33)

810501100

Body Size1/8"
Port Size1/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)23200

810501101

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810501102

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810501103

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501104

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501105

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501106

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810501107

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810501108

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2175
Burst Pressure (PSI)6525

810501401

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810501402

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810501403

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501404

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501405

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810501406

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810501407

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810501408

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2175
Burst Pressure (PSI)6525

810504100

Body Size1/4"
Port Size1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810504101

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810504102

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504103

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504104

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504105

Body Size1 1/4"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810504106

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810504107

Body Size2"
Port Size2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)2175
Burst Pressure (PSI)6525

810504400

Body Size1"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504401

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810504402

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504403

Body Size3/4"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)17400

810504404

Body Size1/4"
Port Size1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5075
Burst Pressure (PSI)20300

810504405

Body Size1 1/4"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810504406

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)3625
Burst Pressure (PSI)14500

810504407

Body Size2"
Port Size2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)2175
Burst Pressure (PSI)6525

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsNPT,SAE
Working PressureUp to 5000
Body Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionNPT,SAE
Max Operating Pressure Coupled (PSI)2175, 3625, 4350, 5075, 5800
Burst Pressure (PSI)14500, 17400, 20300, 23200, 6525
Spillage (ml)0.08, 0.2, 0.39, 0.66
