Skid Steer Hydraulic Couplers · Threaded Flat Face Couplers

VEP SERIES

Scraped SKU: 210 2026-06-05 02:45:28

Description

Description

Connect/Disconnect Under High Residual Pressure

FEATURES
  • Size range: 1/4” thru 2”
  • Port options: NPT, SAE, BSP, ORFS
  • Interchanges with VEPHD, VEPHDL Series
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Working pressure: 35-60 MPa/5075-8700 psi range
  • Eliminates brinelling, reduces leakage
  • Saves time changing tools
APPLICATIONS
  • All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
  • All large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power
  • Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, compactors/hopaks

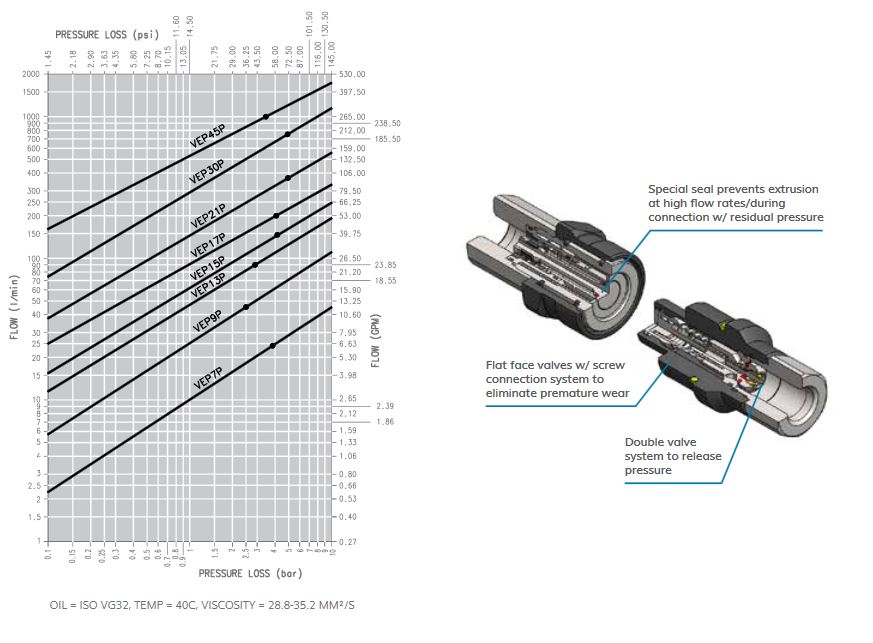

Pressure Drop

vep pressure drop

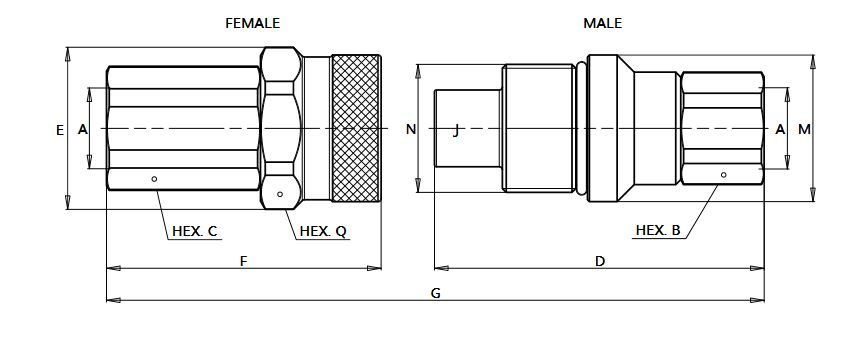

Size Diagram

vep size diagram

jkj

Variations (36)

806501000

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)14500
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

806501001

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

806501003

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

806501005

Body Size5/8"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

806501007

Body Size3/4"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)18125
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

806501009

Body Size1/4"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)8700
Burst Pressure (PSI)21750
Max Residual Pressure During Connection (PSI)4350
Spillage (ml)0.012

806501011

Body Size1"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

806501013

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)15950
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

806501015

Body Size3/8"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

806501017

Body Size1/2"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

807200003

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

807200007

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

807200011

Body Size5/8"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

807200013

Body Size3/4"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)18125
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

807200015

Body Size1"
Port Size1 1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

807200021

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

806500013

Body Size1 1/2"
Port Size1 1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)15950
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

806504001

Body Size3/8"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

806504003

Body Size3/4"
Port Size1"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)18125
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

806504005

Body Size1/2"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

806504007

Body Size5/8"
Port Size3/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

806504009

Body Size1/4"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)8700
Burst Pressure (PSI)21750
Max Residual Pressure During Connection (PSI)4350
Spillage (ml)0.012

806504011

Body Size1"
Port Size1 1/4"
Port OptionSAE
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

806504013

Body Size1 1/2"
Port Size1 1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)15950
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.2

807204001

Body Size3/8"
Port Size3/8"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

807204007

Body Size1/2"
Port Size1/2"
Port OptionSAE
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

807213003

Body Size3/8"
Port Size3/8"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

807213005

Body Size1/2"
Port Size1/2"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

807213007

Body Size5/8"
Port Size3/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

807213009

Body Size3/4"
Port Size1"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)18125
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

807213011

Body Size1"
Port Size1 1/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

807213017

Body Size3/8"
Port Size3/8"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.04

807213019

Body Size1/2"
Port Size1/2"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.025

807213021

Body Size5/8"
Port Size3/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7975
Burst Pressure (PSI)20300
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.033

807213023

Body Size3/4"
Port Size1"
Port OptionORFS
Max Operating Pressure Coupled (PSI)7250
Burst Pressure (PSI)18125
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.018

807213025

Body Size1"
Port Size1 1/4"
Port OptionORFS
Max Operating Pressure Coupled (PSI)6815
Burst Pressure (PSI)17400
Max Residual Pressure During Connection (PSI)3625
Spillage (ml)0.06

Specifications

WeightN/A
DimensionsN/A
Port OptionsBSP,NPT,ORFS,SAE
Valve StyleFlat Face
Working Pressure5000-9000
MaterialCarbon
Body Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionBSP,NPT,ORFS,SAE
Max Operating Pressure Coupled (PSI)6815, 7975, 8500
Burst Pressure (PSI)14500, 15950, 17400, 18125, 20300, 21750
Max Residual Pressure During Connection (PSI)3525, 4350
Spillage (ml)0.006, 0.012, 0.016, 0.018, 0.025, 0.033, 0.04
