Threaded Poppet Couplers

VD SERIES

Scraped SKU: 275 2026-06-05 02:45:29

Description

Description

European Screw Coupler

FEATURES
  • Size range: 1/4” thru 1 1/4”
  • Port options: BSP, NPT, DIN
  • Interchangeable with German market couplings
  • Hardened valve body for impulse applications and friction ring prevents accidental disconnection
  • Internal components purposely designed to reduce turbulence
  • Metal shoulder to protect the O-ring seal on female coupling
  • Available in 1/4 inch to 1 1/4 inch sizes
APPLICATIONS
  • Ideally suited for hydraulic systems experiencing pressure spikes or impulses
  • Serve variety of hydraulic needs in mobile crane, vibratory hammer, oil patch and industrial plant applications
  • Suited for heavy-duty service conditions

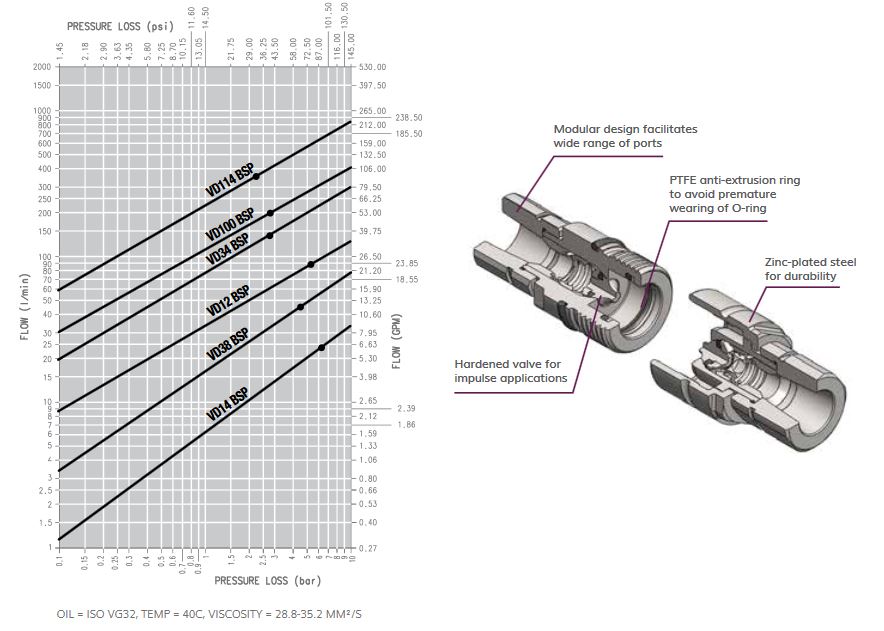

Pressure Drop

vd pressure drop

VD Series Accessories Protective Caps and Plugs | Color Red

ORDER CODE
DESCRIPTION SIZE PLUG FOR FEMALE CAP FOR MALE
VD14 1/4 814900000 814900001
VD38 3/8 814900002 814900003
VD12 1/2 814900004 814900005
VD34 3/4 814900006 814900007
VD100 1 814900008 814900009
VD114 1 1/4 814900010 814900011

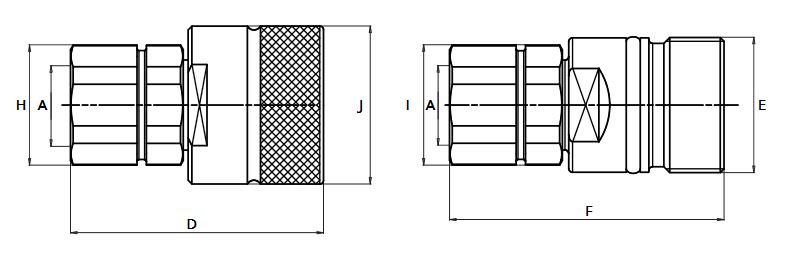

Size Diagram

vd size diagram

* Hexagon Sleeve



Variations (78)

809500000

Body Size1/2"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500001

Body Size1/2"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500002

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500003

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500004

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500005

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809500008

Body Size3/8"
Port Size1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)20300
Spillage (ml)1

809500009

Body Size3/8"
Port Size1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)17400
Spillage (ml)1

809500010

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)20300
Spillage (ml)1

809500011

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)17400
Spillage (ml)1

809500012

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)20300
Spillage (ml)1

809500013

Body Size3/8"
Port Size3/8"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)17400
Spillage (ml)1

809500014

Body Size3/4"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809500015

Body Size3/4"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809500016

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809500017

Body Size3/4"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809500018

Body Size1"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809500019

Body Size1"
Port Size3/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809500020

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809500021

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809500022

Body Size1 1/4"
Port Size1 1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809500023

Body Size1 1/4"
Port Size1 1/4"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809500024

Body Size1 1/4"
Port Size1 1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809500025

Body Size1 1/4"
Port Size1 1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809501002

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809501003

Body Size1/2"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809501008

Body Size3/8"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)20300
Spillage (ml)1

809501009

Body Size3/8"
Port Size1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)17400
Spillage (ml)1

809501010

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)20300
Spillage (ml)1

809501011

Body Size3/8"
Port Size3/8"
Port OptionNPT
Max Operating Pressure Coupled (PSI)6525
Burst Pressure (PSI)17400
Spillage (ml)1

809501014

Body Size3/4"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809501015

Body Size3/4"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809501016

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809501017

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809501018

Body Size1"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809501019

Body Size1"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809501020

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809501021

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809501022

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809501023

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809501024

Body Size1 1/4"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809501025

Body Size1 1/4"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809508000

Body Size1/2"
Port Sizem18x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809508001

Body Size1/2"
Port Sizem18x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809508004

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809508005

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809508008

Body Size1/2"
Port Sizem26x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809508009

Body Size1/2"
Port Sizem26x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809509014

Body Size3/4"
Port Sizem24x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809509015

Body Size3/4"
Port Sizem24x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809509018

Body Size1"
Port Sizem30x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509019

Body Size1"
Port Sizem30x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509020

Body Size1"
Port Sizem36x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509021

Body Size1"
Port Sizem36x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509022

Body Size1"
Port Sizem42x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509023

Body Size1"
Port Sizem42x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809509028

Body Size1 1/4"
Port Sizem52x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809509029

Body Size1 1/4"
Port Sizem52x2
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809510000

Body Size1/2"
Port Sizem18x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809510001

Body Size1/2"
Port Sizem18x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809510004

Body Size1/2"
Port Sizem22x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809510005

Body Size1/2"
Port Sizem22x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809511014

Body Size3/4"
Port Sizem24x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809511016

Body Size3/4"
Port Sizem30x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809511017

Body Size3/4"
Port Sizem30x1-5-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809511018

Body Size1"
Port Sizem30x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511019

Body Size1"
Port Sizem30x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511020

Body Size1"
Port Sizem36x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511021

Body Size1"
Port Sizem36x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511022

Body Size1"
Port Sizem42x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511023

Body Size1"
Port Sizem42x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511024

Body Size1"
Port Sizem52x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)14

809511028

Body Size1 1/4"
Port Sizem52x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809511029

Body Size1 1/4"
Port Sizem52x2-schott
Port OptionDIN
Max Operating Pressure Coupled (PSI)4350
Burst Pressure (PSI)14500
Spillage (ml)51

809512000

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809512001

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)17400
Spillage (ml)3

809512002

Body Size3/4"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

809512003

Body Size3/4"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)5800
Burst Pressure (PSI)14500
Spillage (ml)5

Specifications

WeightN/A
DimensionsN/A
Port OptionsBSP,DIN,NPT
Valve StylePoppet
MaterialCarbon
Working PressureUp to 5000
Body Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2"
Port Size1/4",3/8",1/2",3/4",1",1 1/4",1 1/2"
Port OptionBSP,DIN,NPT
Max Operating Pressure Coupled (PSI)4350, 5800, 6525
Burst Pressure (PSI)14500, 17400, 20300
Spillage (ml)1, 14, 3, 5, 51

PDF Documents

No PDF documents.
