Threaded Poppet Couplers

VLS SERIES

Scraped SKU: 274 2026-06-05 02:45:29

Description

Description

Heavy Duty Screw Coupler

FEATURES
  • Size range: 1/2” thru 1”
  • Port options: BSP, DIN
  • Screw-on system interchangeable with German market couplings
  • Internal components designed to reduce turbulence and handle impulse applications
  • Zinc plated steel coupling body with zinc plated hardened steel nipple
  • Nitrile seals and Teflon anti-extrusion rings
  • Available in two sizes: 1/2 and 1 inch
APPLICATIONS
  • Particularly well suited for heavy-duty service conditions
  • Off-highway applications, especially in construction equipment under extreme conditions
  • Wherever turbulence must be reduced and impulses must be managed

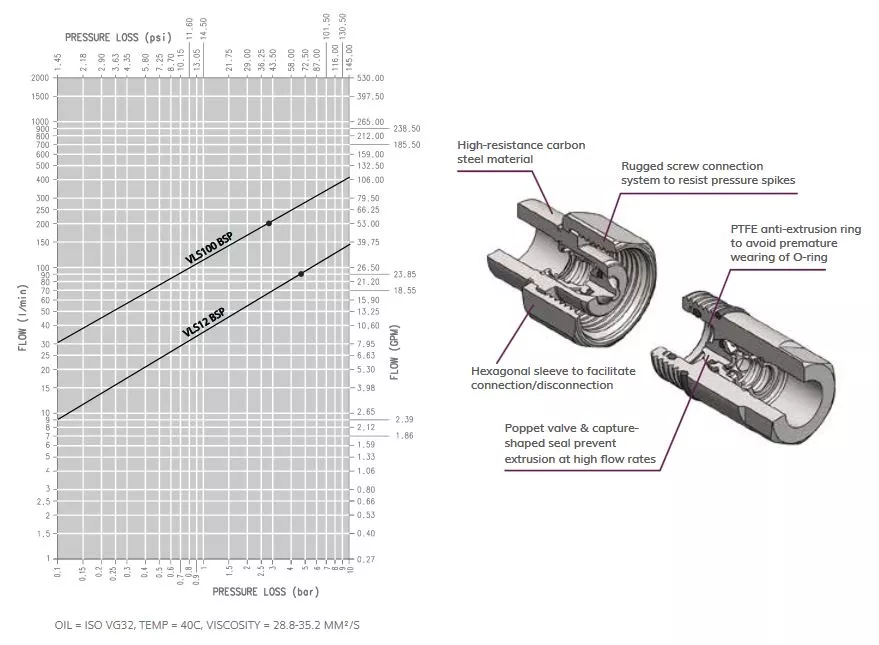

Pressure Drop

vls pressure drop

Size Diagram

vls size diagram

VLS Series Accessories Aluminum Screw Caps

ORDER CODE
DESCRIPTION PLUG FOR FEMALE CAP FOR MALE
VLS12 814906022 814906023
VLS100 814906024 814906025

Variations (8)

809900004

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)24650
Spillage (ml)2.5

809900005

Body Size1/2"
Port Size1/2"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)18850
Spillage (ml)2.5

809900008

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)20300
Spillage (ml)15

809900009

Body Size1"
Port Size1"
Port OptionBSP
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)20300
Spillage (ml)15

809912004

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)24650
Spillage (ml)2.5

809912005

Body Size1/2"
Port Sizem22x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)18850
Spillage (ml)2.5

809912008

Body Size1"
Port Sizem30x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)20300
Spillage (ml)15

809912009

Body Size1"
Port Sizem30x1-5
Port OptionDIN
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)20300
Spillage (ml)15

Specifications

WeightN/A
DimensionsN/A
MaterialCarbon
Port OptionsBSP,DIN
Valve StylePoppet
Working PressureUp to 5000
Body Size1/2",1"
Port Size1/2",1"
Port OptionBSP,DIN
Max Operating Pressure Coupled (PSI)6743
Burst Pressure (PSI)18850, 20300, 24650
Spillage (ml)15, 2.5
