Threaded Poppet Couplers

WING STYLE SERIES

Scraped SKU: 273 2026-06-05 02:45:29

Description

Description

Wing Style Interchange

FEATURES
  • Size range: 3/4” thru 1 1/2”
  • Port options: NPT
  • Interchanges with Parker 6100, Aeroquip 5100
  • Threaded sleeve allows connection/disconnection under pressure
  • Seals: Nitrile
  • Coupler and nipple: brass material
  • Wing: cast steel
APPLICATIONS
  • Any instance requiring a connect-under-pressure coupling with minimum spillage and air inclusion
  • Oil and gas, mobile construction, industrial

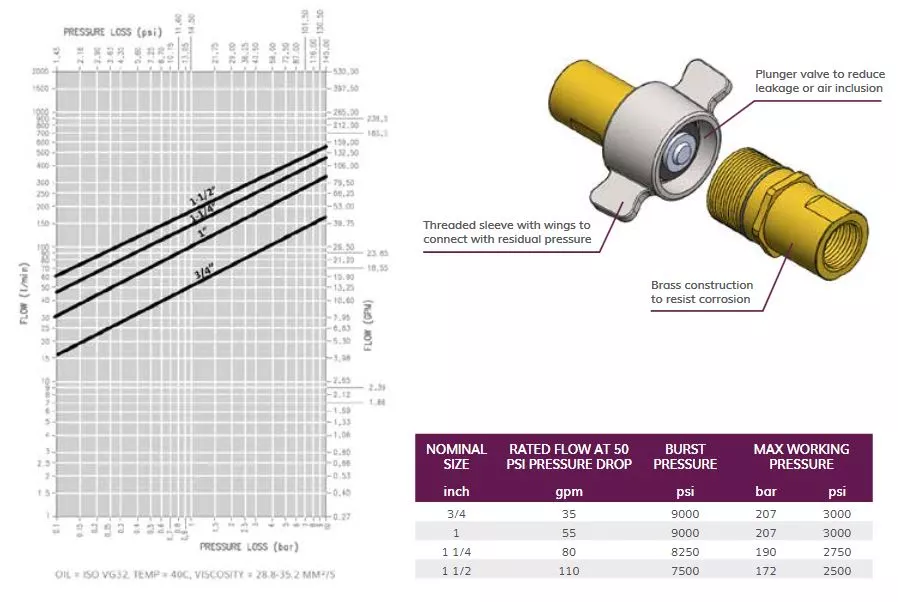

Pressure Drop

wing pressure drop

Wing Style Series Accessories Protective Caps

DESCRIPTION ORDER CODE CAP FOR COUPLER
F. CAP 6WDP-B 200610012 100610012
M. CAP W6DC-B 200610112 100610112
F. CAP 8WDP-B 200610016 100610016
M. CAP W8DC-B 200610116 100610116
F. CAP 10WDP-B 200610020 100610020
M. CAP W10DC-B 200610120 100610120
F. CAP 12WDP-B 200610024 100610024
M. CAP W12DC-B 200610124 100610124

Variations (10)

100610008

Body Size3/4"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610108

Body Size3/4"
Port Size1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610012

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610016

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610020

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2750
Burst Pressure (PSI)8250

100610024

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2500
Burst Pressure (PSI)7500

100610112

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610116

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000

100610120

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2750
Burst Pressure (PSI)8250

100610124

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2500
Burst Pressure (PSI)7500

Specifications

WeightN/A
DimensionsN/A
MaterialBrass
Port OptionsNPT
Valve StylePoppet
Working PressureUp to 5000
Body Size1/2",3/4",1",1 1/4",1 1/2"
Port Size1/2",3/4",1",1 1/4",1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)2500, 2750, 3000
Burst Pressure (PSI)7500, 8250, 9000
