Threaded Poppet Couplers

VOFX SERIES

Scraped SKU: 271 2026-06-05 02:45:29

Description

Description

316 Stainless Steel

FEATURES
  • Size range: 3/4 thru 2”
  • Port options: NPT, BSP
  • Interchanges with Snap-Tite 75, Dixon WS
  • 316 stainless steel material to resist corrosion
  • Positive-stop valving prevents flow checking
  • Large diameter sleeves resist deformation for maximum life
  • Inspection hole to visually confirm complete connection
APPLICATIONS
  • Oil & gas applications needing high resistance to pressure impulses, such as BOPs and top drives
  • Suitable for open- or closed-center hydraulic system

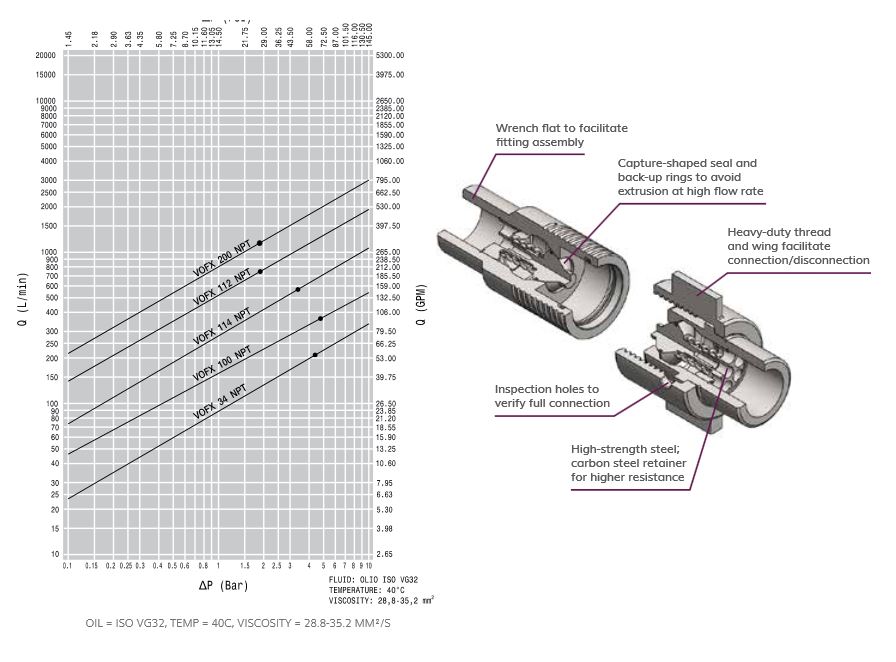

Pressure Drop

vofx pressure drop

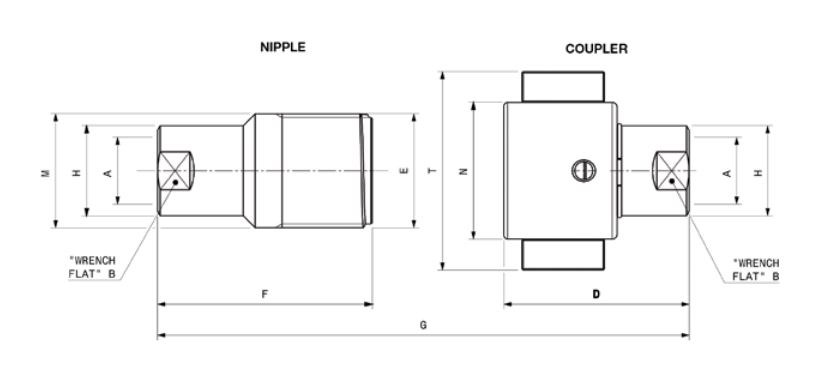

Size Diagram

vofx size diagram

Spare Kit Seal for Nipple



BODY SIZE DESCRIPTION ORDER CODE
3/4 VOFX 34 KIT 815700956
1 VOFX 100 KIT 815700958
1 1/4 VOFX 114 KIT 815700960
1 1/2 VOFX 112 KIT 815700962
2 VOFX 200 KIT 815700964

VOF Series Accessories Protective Caps and Plugs

ORDER CODE
BODY SIZE PLUG FOR COUPLER CAP FOR NIPPLE MATERIAL / COLOR
3/4 815405013 815405012 ALUMINUM / NATURAL
1 815405011 815405010 ALUMINUM / NATURAL
1 1/4 815405015 815405014 ALUMINUM / NATURAL
1 1/2 815405017 815405016 ALUMINUM / NATURAL
2 815405019 815405018 ALUMINUM / NATURAL

Protective caps, which can increase the product life, are always recommended to protect the couplings from damage and dirt. This is particularly important in oil & gas and mobile applications, where exposure to weather and aggregate materials are common. The protective caps for VOF couplings are manufactured in aluminum (natural color).

Variations (10)

811201050

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)11.5

811201051

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)11.5

811201052

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)21.2

811201053

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)21.2

811201054

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)42.3

811201055

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)42.3

811201056

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)86.5

811201057

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)86.5

811201058

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)9000
Spillage (ml)166

811201059

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)6000
Spillage (ml)166

Specifications

WeightN/A
DimensionsN/A
MaterialStainless
Port OptionsBSP,NPT
Valve StylePoppet
Working PressureUp to 5000
Body Size3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)3000
Burst Pressure (PSI)6000, 9000
Spillage (ml)11.5, 166, 21.2, 41.3, 86.5
