Threaded Poppet Couplers

VOF SERIES

Scraped SKU: 264 2026-06-05 02:45:29

Description

Description

VOF Interchange: Hydraulics Inc 5TV, Snap‐Tite 75, Dixon WS, Faster OGV

FEATURES
  • Size range: 3/4 thru 2”
  • Port options: NPT, BSP
  • Interchanges with Hydraulics Inc 5TV, Snap-Tite 75, Dixon WS, Faster OGV
  • Connection under residual pressure is allowed in one side
  • Positive-stop valving prevents flow checking
  • Large diameter steel sleeves resist deformation for maximum life
  • Inspection hole to visually confirm complete connection
APPLICATIONS
  • Excavators w/auxiliary line for attachments: piling hammers and augers
  • Oil & gas applications needing high resistance to pressure impulses, such as BOPs and top drives
  • Suitable for open- or closed-center hydraulic system

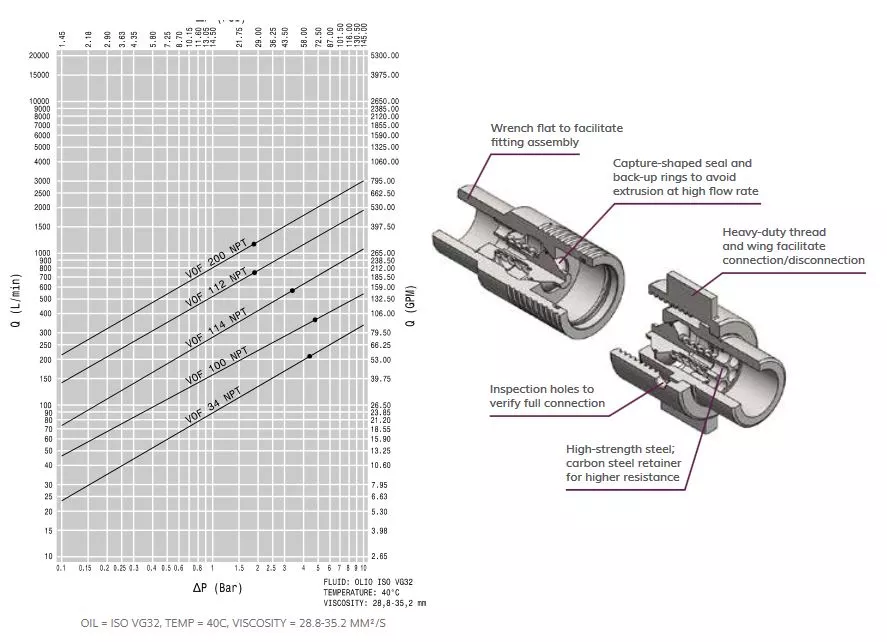

Pressure Drop

vof pressure drop

Size Diagram

vof size diagram

Spare Kit Seal for Nipple

BODY SIZE DESCRIPTION ORDER CODE
3/4 VOF 34 KIT 8155700956
1 VOF 100 KIT 8155700958
1 1/4 VOF 114 KIT 8155700960
1 1/2 VOF 112 KIT 8155701122
2 VOF 200 KIT 8155700964

VOF Series Accessories Protective Caps and Plugs

ORDER CODE
BODY SIZE PLUG FOR COUPLER CAP FOR NIPPLE MATERIAL / COLOR
3/4 815405013 815405012 ALUMINUM / NATURAL
1 815405011 815405010 ALUMINUM / NATURAL
1 1/4 815405015 815405014 ALUMINUM / NATURAL
1 1/2 815405017 815405016 ALUMINUM / NATURAL
2 815405019 815405018 ALUMINUM / NATURAL

Protective caps, which can increase the product life, are always recommended to protect the couplings from damage and dirt. This is particularly important in oil & gas and mobile applications, where exposure to weather and aggregate materials are common. The protective caps for VOF couplings are manufactured in aluminum (natural color).

Variations (10)

811201000

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)20000
Spillage (ml)21.2

811201001

Body Size1"
Port Size1"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)14500
Spillage (ml)21.2

811201002

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)20000
Spillage (ml)11.5

811201003

Body Size3/4"
Port Size3/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)14500
Spillage (ml)11.5

811201004

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)20000
Spillage (ml)42.3

811201005

Body Size1 1/4"
Port Size1 1/4"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)14500
Spillage (ml)42.3

811201006

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)20000
Spillage (ml)86.5

811201007

Body Size1 1/2"
Port Size1 1/2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)12000
Spillage (ml)86.5

811201008

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)13050
Spillage (ml)166

811201009

Body Size2"
Port Size2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)11000
Spillage (ml)166

Specifications

WeightN/A
DimensionsN/A
Port OptionsBSP,NPT
Valve StylePoppet
MaterialCarbon
Working PressureUp to 5000
Body Size3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port Size3/8",1/2",3/4",1",1 1/4",1 1/2",2"
Port OptionNPT
Max Operating Pressure Coupled (PSI)5000
Burst Pressure (PSI)11000, 12000, 13050, 14500, 20000
Spillage (ml)11.5, 166, 21.2, 42.3, 86.5
